• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566278
1 1

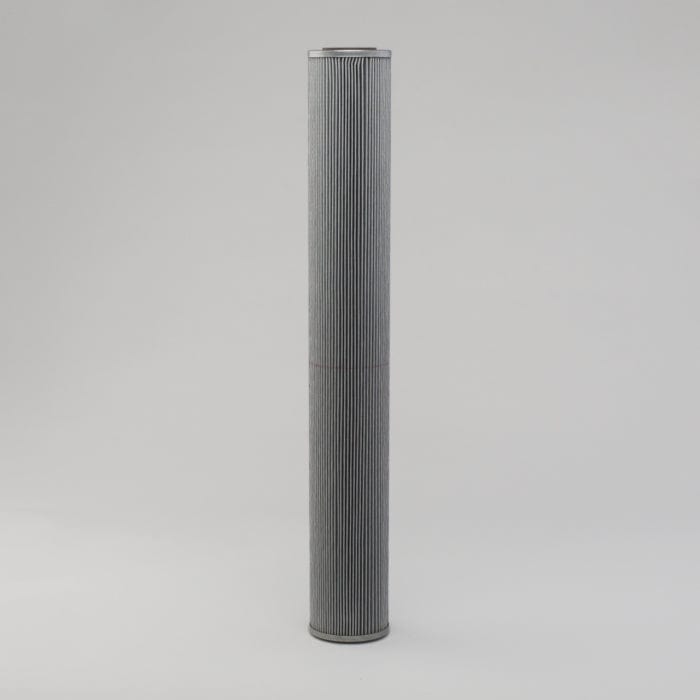

Hydraulic Filter, Cartridge Dt - Donaldson P566278

Hydraulic Filter, Cartridge Dt - Donaldson P566278

£178.27
£178.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566278

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.85 inch (97.9 mm)
Inner Diameter 1.61 inch (40.8 mm)
Length 27.47 inch (697.69 mm)
Overall Length 27.75 inch (704.8 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Series WL16, W451
Brand DT High-Performance
Media Type Synthetic
Primary Application SCHROEDER KKKZ1
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 97.9 mm (3.85 inch)
  • Inner Diameter: 40.8 mm (1.61 inch)
  • Length: 697.69 mm (27.47 inch)
  • Overall Length: 704.8 mm (27.75 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: WL16
  • W451:
  • Brand: DT High-Performance
  • Media Type: Synthetic
  • Primary Application: SCHROEDER KKKZ1

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.740 m (29.60 inch)
  • Packaged Weight: 1.880 kg (4.14 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175262

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 57336406
ATLAS COPCO 2659598575
VICKERS V4051B7C03

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ATLAS COPCO DM45 - DRILLING EQUIPMENT - CATERPILLAR C18 -
