• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566277
1 1

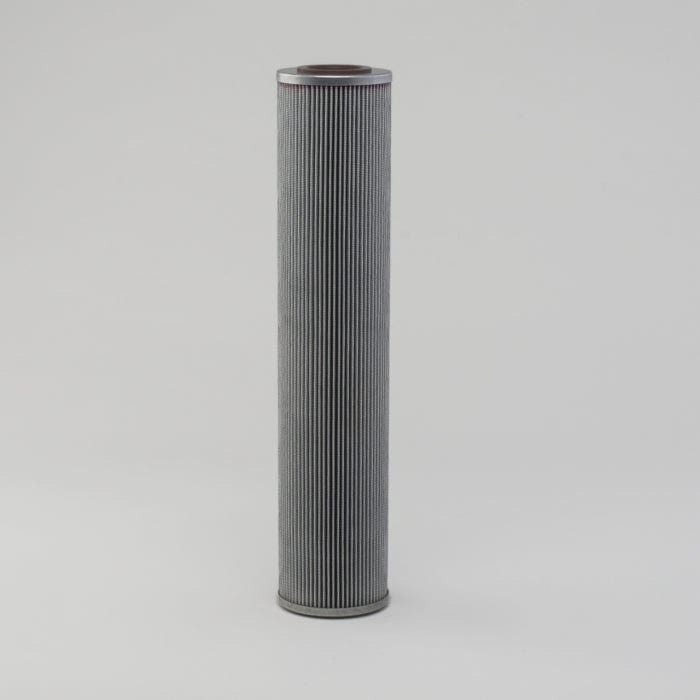

Hydraulic Filter, Cartridge Dt - Donaldson P566277

Hydraulic Filter, Cartridge Dt - Donaldson P566277

£99.85
£99.85
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566277

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.85 inch (97.9 mm)
Inner Diameter 1.61 inch (40.8 mm)
Length 18.03 inch (457.99 mm)
Overall Length 18.32 inch (465.3 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Series WL16, W451
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 97.9 mm (3.85 inch)
  • Inner Diameter: 40.8 mm (1.61 inch)
  • Length: 457.99 mm (18.03 inch)
  • Overall Length: 465.3 mm (18.32 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: WL16
  • W451:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.108 m (4.32 inch)
  • Packaged Width: 0.108 m (4.32 inch)
  • Packaged Height: 0.489 m (19.56 inch)
  • Packaged Weight: 1.330 kg (2.93 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175255

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BEK1825A
BEHRINGER BEK1825AV
DENISON DE4051B5C20
EPPENSTEINER 1HF42H20SLA000V
EPPENSTEINER 1HF42H20SLA000P
MP FILTRI MP3016
MP FILTRI MP3014
PTI P97100JFB
PTI P97100JFV
PTI HF4100JFB
PTI HF4100JFV
VICKERS V4051V6C20
