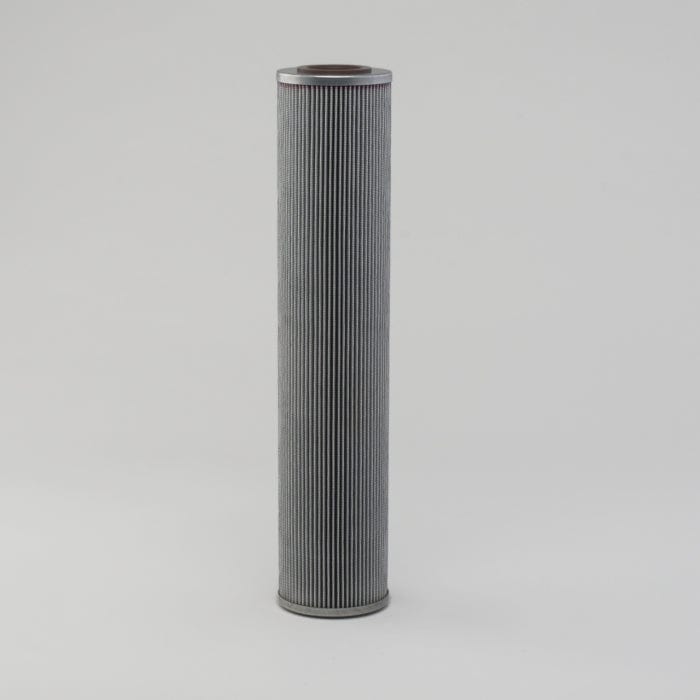

Hydraulic Filter, Cartridge Dt - Donaldson P566276

Hydraulic Filter, Cartridge Dt - Donaldson P566276

£100.83
£100.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566276

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 97.9 mm (3.85 inch)
  • Inner Diameter: 40.8 mm (1.61 inch)
  • Length: 457.99 mm (18.03 inch)
  • Overall Length: 465.3 mm (18.32 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: WL16
  • W451:
  • Brand: DT High-Performance
  • Media Type: Synthetic
  • Primary Application: SCHROEDER KKZ10

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.488 m (19.50 inch)
  • Packaged Weight: 1.353 kg (2.98 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175248

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BEK1812AV
EPPENSTEINER 1HF42H10SLA000V
EPPENSTEINER 1HF43H10SLA000V
GRAINGER 52YT44
MP FILTRI MP3013
PTI HF4100KFV
PTI P97100KFV
VICKERS 737834
VICKERS V4051V6V10
VICKERS V4051V6C10
