• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566275
1 1

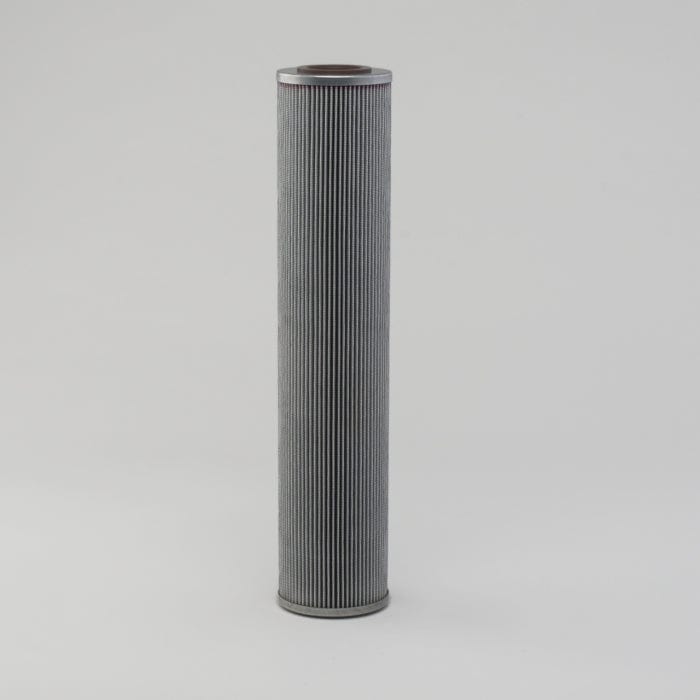

Hydraulic Filter, Cartridge Dt - Donaldson P566275

Hydraulic Filter, Cartridge Dt - Donaldson P566275

£99.55
£99.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566275

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.85 inch (97.9 mm)
Inner Diameter 1.61 inch (40.8 mm)
Length 18.03 inch (457.99 mm)
Overall Length 18.32 inch (465.3 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Series WL16, W451
Brand DT High-Performance
Media Type Synthetic
Primary Application SCHROEDER KKZ3
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 97.9 mm (3.85 inch)
  • Inner Diameter: 40.8 mm (1.61 inch)
  • Length: 457.99 mm (18.03 inch)
  • Overall Length: 465.3 mm (18.32 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: WL16
  • W451:
  • Brand: DT High-Performance
  • Media Type: Synthetic
  • Primary Application: SCHROEDER KKZ3

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.110 m (4.40 inch)
  • Packaged Height: 0.488 m (19.50 inch)
  • Packaged Weight: 1.330 kg (2.93 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330175231

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BEK1806AV
EATON 229AS10036A
EPPENSTEINER 1HF42H6SLA000V
MCNEILUS 1453647
MP FILTRI MP3012
MP FILTRI MP11499
PTI HF4100HFV
PTI P97100HFB
PTI P97100HFV
VICKERS V4051B6V05
VICKERS V4051B6C05
VICKERS V4051V6V05
VICKERS V4051V6C05
