• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566269
1 1

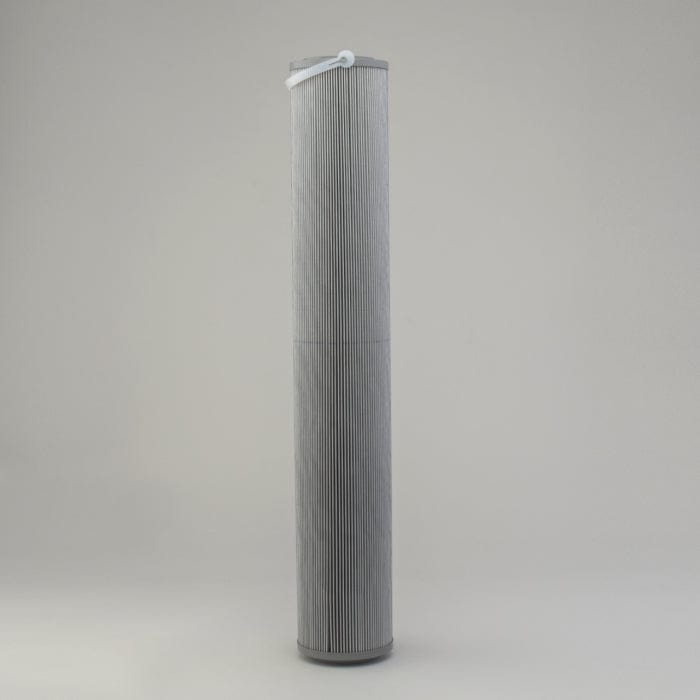

Hydraulic Filter, Cartridge Dt - Donaldson P566269

Hydraulic Filter, Cartridge Dt - Donaldson P566269

£290.37
£290.37
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566269

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 98.5 mm (3.88 inch)
  • Overall Length: 923.9 mm (36.37 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.015 m (40.60 inch)
  • Packaged Weight: 4.399 kg (9.69 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175293

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE83143925AV
DENISON DE2683V8E20
HILCO 386003013C
MP FILTRI MP5270
PTI PC83250JFV
SWIFT SF83143925UMV
