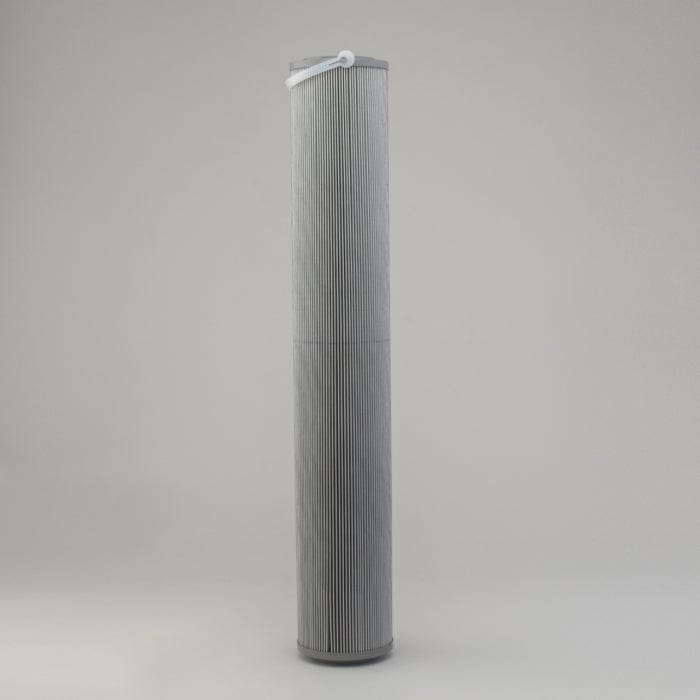

Hydraulic Filter, Cartridge Dt - Donaldson P566268

Hydraulic Filter, Cartridge Dt - Donaldson P566268

£355.87
£355.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566268

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 98.5 mm (3.88 inch)
  • Length: 898.91 mm (35.39 inch)
  • Overall Length: 923.9 mm (36.37 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.015 m (40.60 inch)
  • Packaged Weight: 4.445 kg (9.79 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175163

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE83143912A
BEHRINGER BE83143912AV
DENISON DE2683V8E10
DENISON DE2683B8E10
HILCO 386011012C
HILCO 386011035C
MP FILTRI MP5268
MP FILTRI MP5267
PTI PC83250HFV
PTI PC83250KFB
SWIFT SF83143912UMV
SWIFT SF83143912UM
