• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566266
1 1

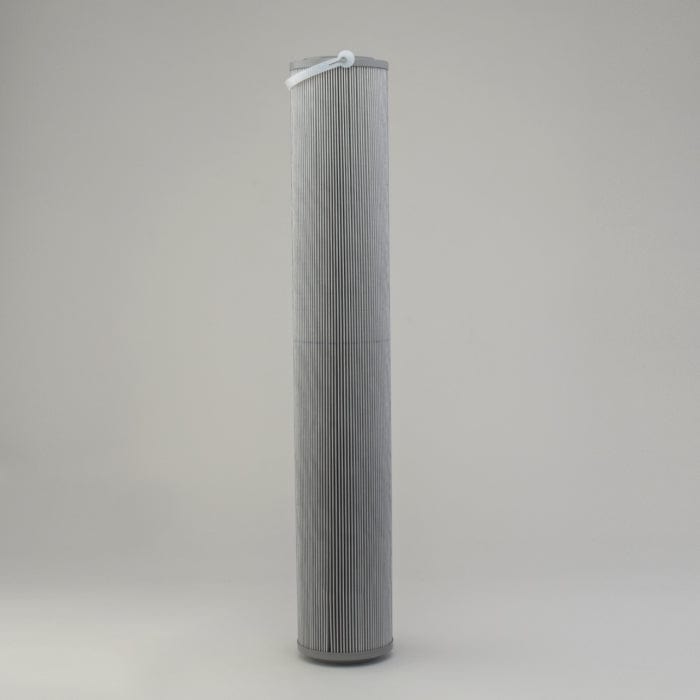

Hydraulic Filter, Cartridge Dt - Donaldson P566266

Hydraulic Filter, Cartridge Dt - Donaldson P566266

£354.27
£354.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566266

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 6 inch (152.4 mm)
Inner Diameter 3.88 inch (98.5 mm)
Overall Length 36.37 inch (923.9 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 98.5 mm (3.88 inch)
  • Overall Length: 923.9 mm (36.37 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.015 m (40.60 inch)
  • Packaged Weight: 4.463 kg (9.83 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175149

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE83143903AV
BEHRINGER BE83143903A
DENISON DE2683B8E03
DENISON DE2683V8E03
GRAINGER 52YT53
HILCO 386014029C
HILCO 386014028C
MP FILTRI MP5264
MP FILTRI MP5263
PTI PC83250GFV
SOPHTECH STF100065B
SWIFT SF8314393UM
SWIFT SF8314393UMV
