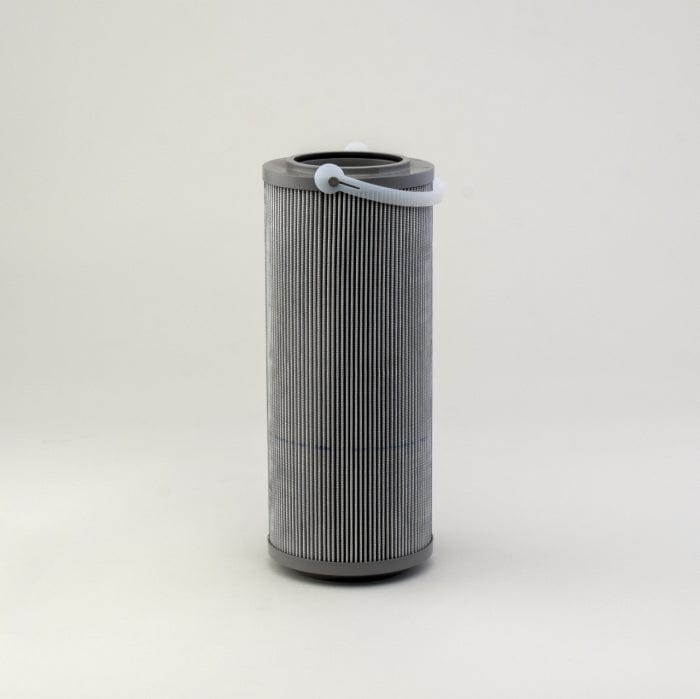

Hydraulic Filter, Cartridge Dt - Donaldson P566263

Hydraulic Filter, Cartridge Dt - Donaldson P566263

£161.68
£161.68
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566263

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 98.5 mm (3.88 inch)
  • Overall Length: 367.8 mm (14.48 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.168 m (6.70 inch)
  • Packaged Width: 0.163 m (6.50 inch)
  • Packaged Height: 0.498 m (19.90 inch)
  • Packaged Weight: 1.407 kg (3.10 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175118
