• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566262
1 1

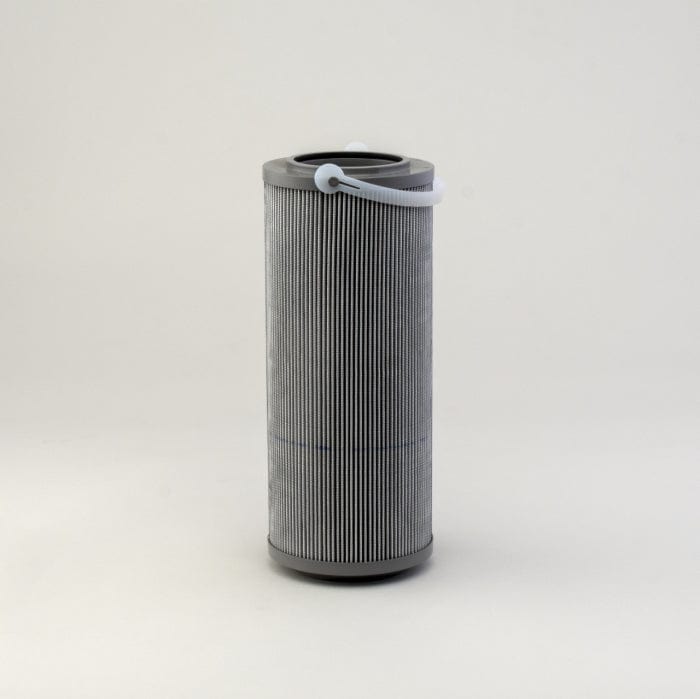

Hydraulic Filter, Cartridge Dt - Donaldson P566262

Hydraulic Filter, Cartridge Dt - Donaldson P566262

£261.76
£261.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566262

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 95.7 mm (3.77 inch)
  • Overall Length: 367.8 mm (14.48 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.163 m (6.50 inch)
  • Packaged Width: 0.168 m (6.70 inch)
  • Packaged Height: 0.440 m (17.60 inch)
  • Packaged Weight: 1.444 kg (3.18 lb)
  • Packaged Volume: 0.012 m3 (0.44 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330175101

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE83141603A
DENISON DE2683B5E05
DENISON DE2683V5E05
HILCO 386012018C
MP FILTRI MP5246
MP FILTRI MP5245
PTI PC83150HFB
PTI PC83150HFV
SWIFT SF8314166UMV
SWIFT SF8314166UM
