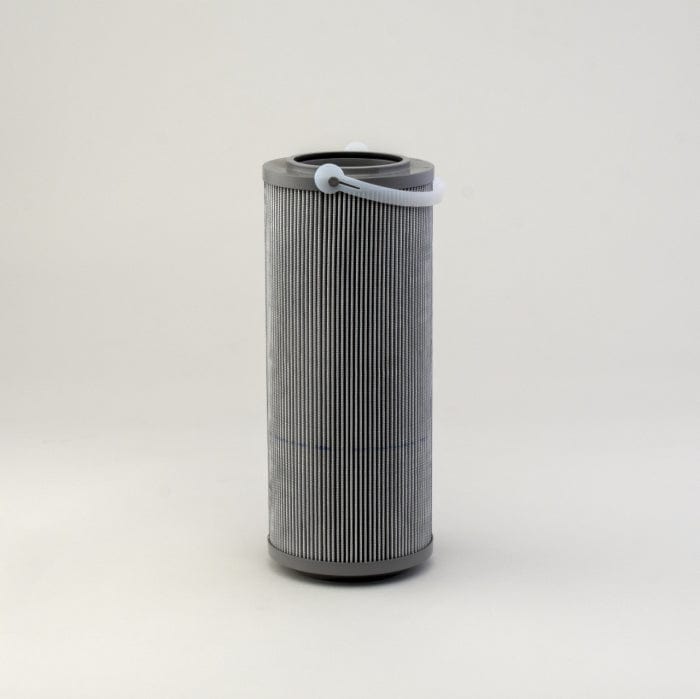

• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566260
1 1

Hydraulic Filter, Cartridge Dt - Donaldson P566260

Hydraulic Filter, Cartridge Dt - Donaldson P566260

£268.11
£268.11
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566260

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 6 inch (152.4 mm)
Inner Diameter 3.77 inch (95.8 mm)
Overall Length 14.48 inch (367.8 mm)
Efficiency Beta 1000 4 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.4 mm (6 inch)
  • Inner Diameter: 95.8 mm (3.77 inch)
  • Overall Length: 367.8 mm (14.48 inch)
  • Efficiency Beta 1000: 4 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.495 m (19.80 inch)
  • Packaged Weight: 1.435 kg (3.16 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175170

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
HILCO 386016022C
MP FILTRI MP5242
