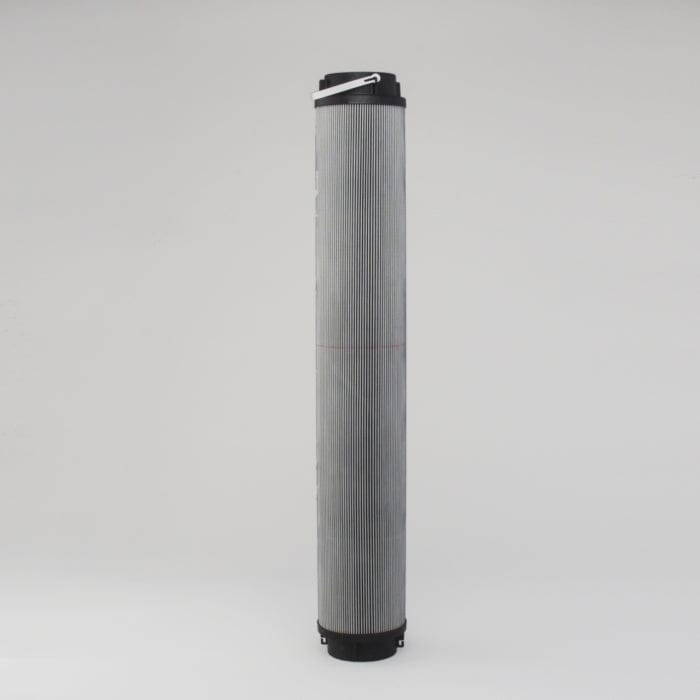

Hydraulic Filter, Cartridge Dt - Donaldson P566257

Hydraulic Filter, Cartridge Dt - Donaldson P566257

£356.73
£356.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566257

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 960.1 mm (37.8 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.175 m (7.00 inch)
  • Packaged Width: 0.175 m (7.00 inch)
  • Packaged Height: 1.013 m (40.50 inch)
  • Packaged Weight: 6.349 kg (13.99 lb)
  • Packaged Volume: 0.032 m3 (1.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175491

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7234577 P566247 is standard capacity; P566257 is high capacity
ARGO 7242531 P566247 is standard capacity; P566257 is high capacity
ARGO 7242024 P566247 is standard capacity; P566257 is high capacity
ARGO 7242023 P566247 is standard capacity; P566257 is high capacity
ARGO 7234578 P566247 is standard capacity; P566257 is high capacity
BOSCH-REXROTH R928016742
CATERPILLAR 3I0616
CATERPILLAR 3I0616
DENISON DE0411V8L10
EPPENSTEINER 168310XH10XLS000V
EPPENSTEINER 168310XH10SLS000V
FINN EQUIPMENT FFPAVL11132C10
FINN EQUIPMENT FFPAVL11132C10
GENERAL ELECTRIC 165A205FY75
GENERAL ELECTRIC 165A205FY75
GRAINGER 52YR90
HILCO PH73901CG P566247 is standard capacity; P566257 is high capacity
HILCO PH73911CG P566247 is standard capacity; P566257 is high capacity
HILCO PH73901CGV P566247 is standard capacity; P566257 is high capacity
LIEBHERR 8636964
LIEBHERR 8636964
MP FILTRI MP3409
MP FILTRI MP3209
MP FILTRI MP3209
PTI DP83250KFV
SWIFT SF83103912UMV
VICKERS V0411V8L10
VMC HF171045
VMC HF171045
