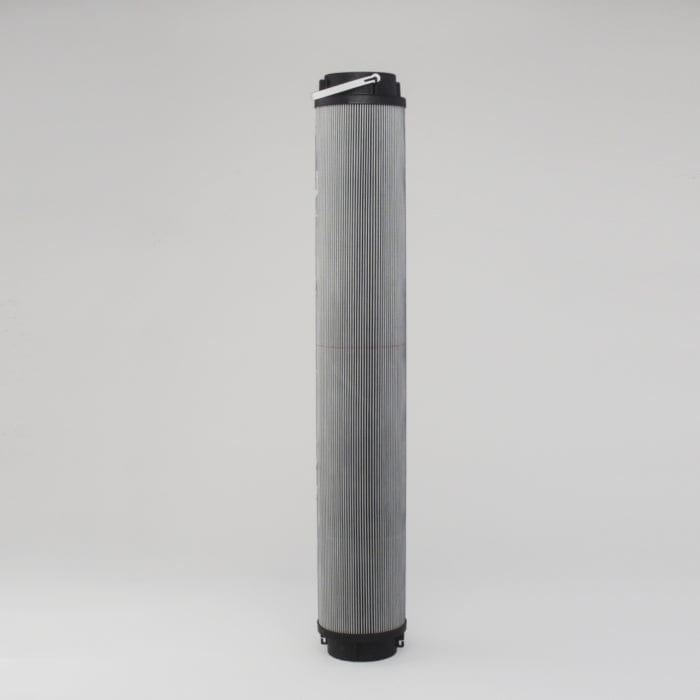

Hydraulic Filter, Cartridge Dt - Donaldson P566256

Hydraulic Filter, Cartridge Dt - Donaldson P566256

£501.12
£501.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566256

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 960.1 mm (37.8 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.013 m (40.50 inch)
  • Packaged Weight: 5.766 kg (12.70 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330175484

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7242025 P566246 is standard capacity; P566256 is high capacity
ARGO 7253757 P566246 is standard capacity; P566256 is high capacity
BOSCH-REXROTH R928016741
DENISON DE0411V8L05
EPPENSTEINER 168310XH6XLS000V
EPPENSTEINER 168310XH6SLS000V
HILCO PH73912CG P566246 is standard capacity; P566256 is high capacity
MP FILTRI MP3408
PTI DP83250HFV
SWIFT SF8310396UMV
VICKERS V0411V8L05
