• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566253
1 1

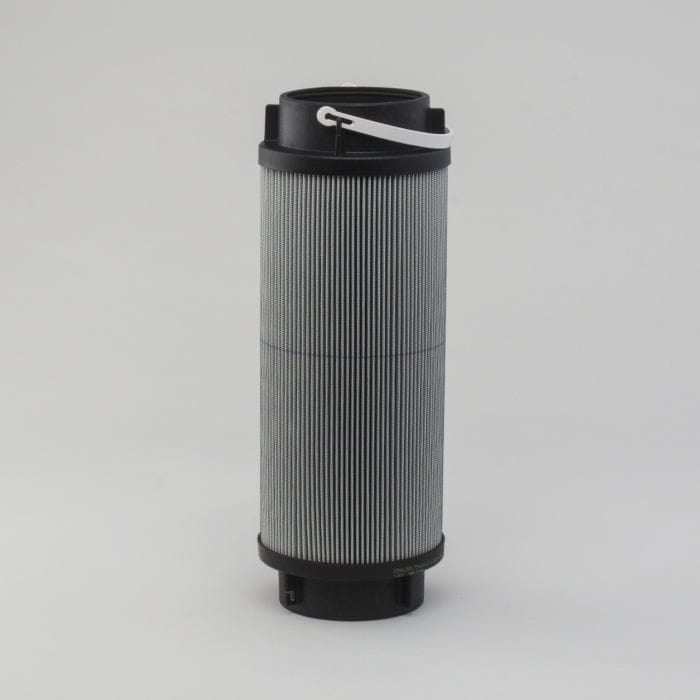

Hydraulic Filter, Cartridge Dt - Donaldson P566253

Hydraulic Filter, Cartridge Dt - Donaldson P566253

£299.28
£299.28
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566253

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 5.94 inch (150.8 mm)
Inner Diameter 4.11 inch (104.4 mm)
Overall Length 16.09 inch (408.7 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Series W041
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 408.7 mm (16.09 inch)
  • Efficiency Beta 1000: 25 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.495 m (19.80 inch)
  • Packaged Weight: 2.338 kg (5.15 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175453

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0411B5L20
DENISON DE0411V5L20
GRAINGER 1XPR1
MP FILTRI MP3405
MP FILTRI MP5225
PTI DP83150JFV
PTI DP83150JFB
SWIFT SF83101625UM
SWIFT SF83101625UMV
VICKERS V0411V5L20
VICKERS V0411B5L20
