• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566252
1 1

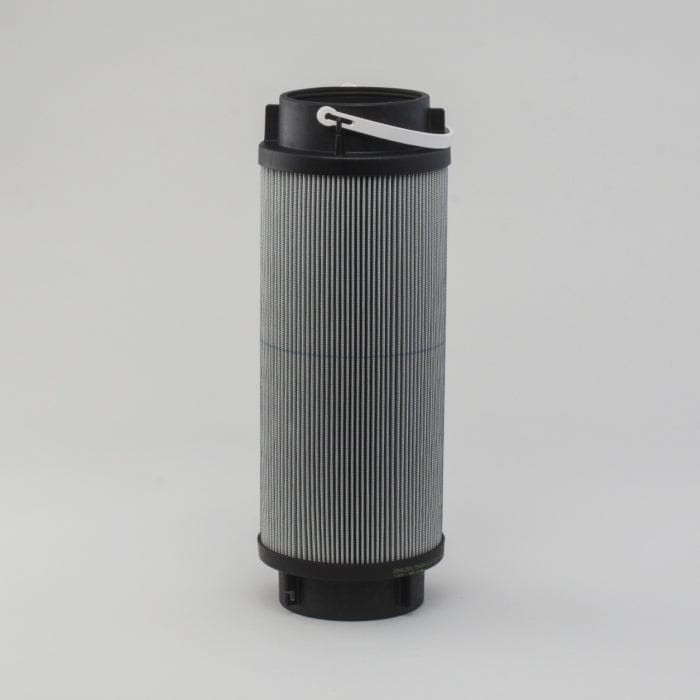

Hydraulic Filter, Cartridge Dt - Donaldson P566252

Hydraulic Filter, Cartridge Dt - Donaldson P566252

£295.59
£295.59
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566252

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 408.7 mm (16.09 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.163 m (6.50 inch)
  • Packaged Width: 0.163 m (6.50 inch)
  • Packaged Height: 0.495 m (19.80 inch)
  • Packaged Weight: 2.324 kg (5.12 lb)
  • Packaged Volume: 0.014 m3 (0.48 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175446

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0411B5L10
DENISON DE0411V5L10
GRAINGER 52YT22
MP FILTRI MP3404
MP FILTRI MP5224
PTI DP83150KFV
PTI DP83150KFB
SWIFT SF83101612UM
SWIFT SF83101612UMV
VICKERS V0411V5L10
VICKERS V0411B5L10
