• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566251
1 1

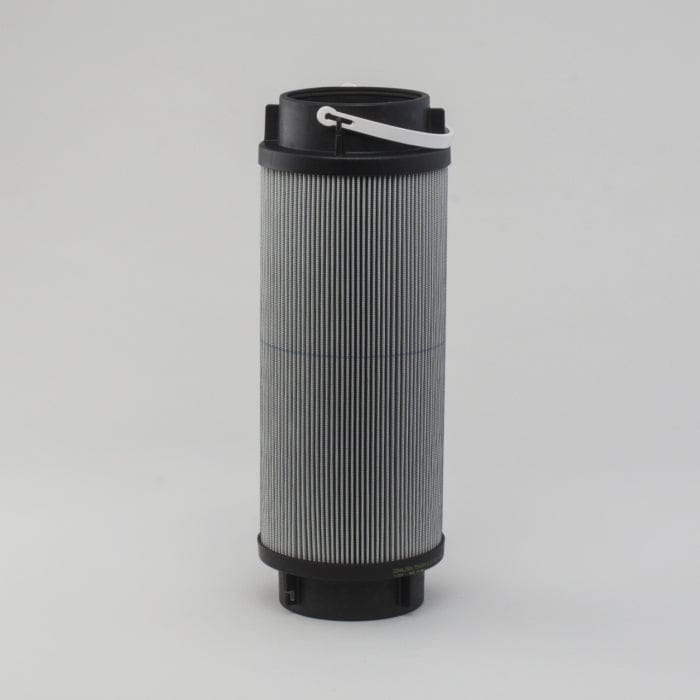

Hydraulic Filter, Cartridge Dt - Donaldson P566251

Hydraulic Filter, Cartridge Dt - Donaldson P566251

£170.93
£170.93
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566251

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 408.7 mm (16.09 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.168 m (6.70 inch)
  • Packaged Width: 0.163 m (6.50 inch)
  • Packaged Height: 0.493 m (19.70 inch)
  • Packaged Weight: 2.293 kg (5.05 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175439

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0411B5L05
DENISON DE0411V5L05
MP FILTRI MP3403
MP FILTRI MP5223
PTI DP83150HFV
PTI DP83150HFB
SWIFT SF8310166UMV
SWIFT SF8310166UM
VICKERS V0411V5L05
VICKERS V0411B5L05
