• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566249
1 1

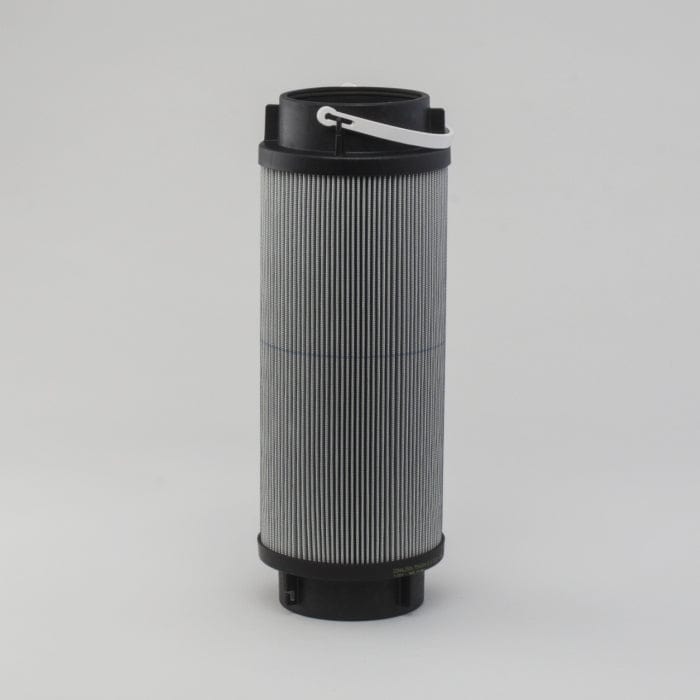

Hydraulic Filter, Cartridge Dt - Donaldson P566249

Hydraulic Filter, Cartridge Dt - Donaldson P566249

£311.68
£311.68
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566249

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 150.8 mm (5.94 inch)
  • Inner Diameter: 104.4 mm (4.11 inch)
  • Overall Length: 408.7 mm (16.09 inch)
  • Efficiency Beta 1000: 4 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.163 m (6.50 inch)
  • Packaged Width: 0.163 m (6.50 inch)
  • Packaged Height: 0.500 m (20.00 inch)
  • Packaged Weight: 2.320 kg (5.11 lb)
  • Packaged Volume: 0.014 m3 (0.49 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175309

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI MP3401
