• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566248
1 1

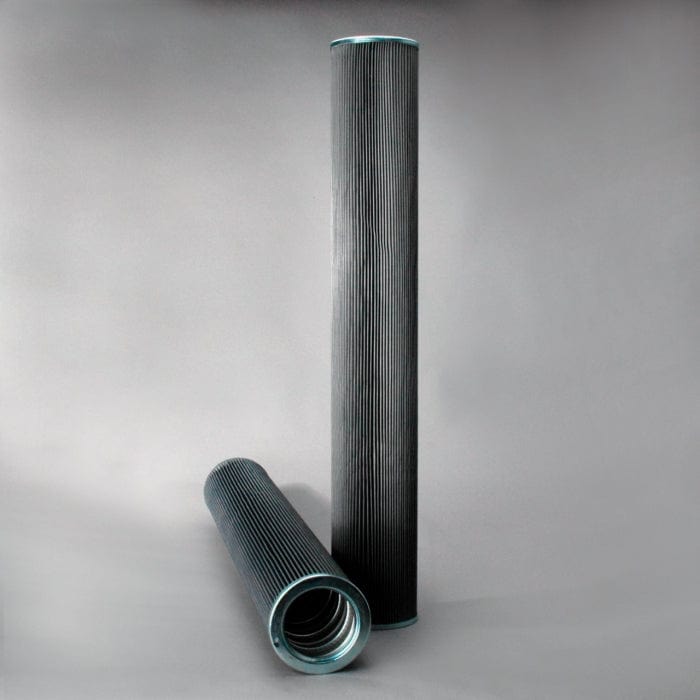

Hydraulic Filter, Cartridge Dt - Donaldson P566248

Hydraulic Filter, Cartridge Dt - Donaldson P566248

£422.92
£422.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566248

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 151.4 mm (5.96 inch)
  • Inner Diameter: 103.9 mm (4.09 inch)
  • Length: 981.7 mm (38.65 inch)
  • Efficiency Beta 1000: 25 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.015 m (40.60 inch)
  • Packaged Weight: 6.642 kg (14.63 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175408

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7234579 P566248 is standard capacity; P566258 is high capacity
ARGO 7234580 P566248 is standard capacity; P566258 is high capacity
BOSCH-REXROTH R928016699
BOSCH-REXROTH R928016711
DENISON DE0411B8C20
DENISON DE0411V8C20
DENISON DE0410V3U25
DENISON DE0410B3U25
DIAGNETICS LPH539V25
DIAGNETICS LPG539V25
DIAGNETICS LPH539B25
DIAGNETICS LPG539B25
EPPENSTEINER 168300H20LL981XP
EPPENSTEINER 168300XH20SLS000P
EPPENSTEINER 168300XH20SLS000V
EPPENSTEINER 168300XH20XLS000V
EPPENSTEINER 168300XH20XLS000M
GRAINGER 52YT29
HILCO 386003012C
HILCO PH73903CGV
HILCO PH73903CG
HILCO PH73905CGV
HILCO 386003026C
HILCO PH63903C P566248 is standard capacity; P566258 is high capacity
HILCO PH63903CV P566248 is standard capacity; P566258 is high capacity
HILCO PH63905C P566248 is standard capacity; P566258 is high capacity
MP FILTRI MP5218
MP FILTRI MP3212
PTI P83250JFB
PTI P83250JFV
PTI P83250EFB
SWIFT SF83003925UM
SWIFT SF83003925UMV
VICKERS V0411V8C20
VICKERS V0411V8V20
VICKERS V0411B8C20
