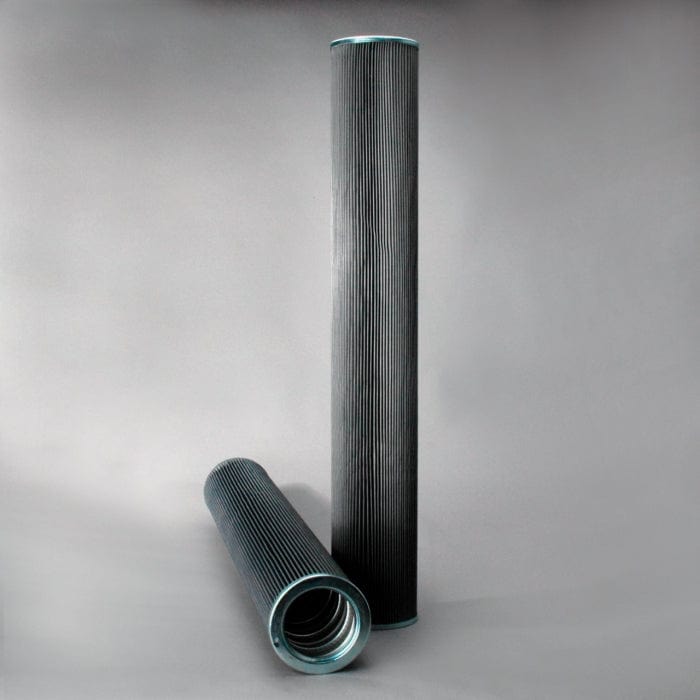

• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566245
1 1

Hydraulic Filter, Cartridge Dt - Donaldson P566245

Hydraulic Filter, Cartridge Dt - Donaldson P566245

£416.63
£416.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566245

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 151.4 mm (5.96 inch)
  • Inner Diameter: 103.9 mm (4.09 inch)
  • Length: 981.7 mm (38.65 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: W041
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.175 m (7.00 inch)
  • Packaged Width: 0.175 m (7.00 inch)
  • Packaged Height: 1.010 m (40.40 inch)
  • Packaged Weight: 6.510 kg (14.34 lb)
  • Packaged Volume: 0.032 m3 (1.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330175378

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7234581 P566245 is standard capacity; P566255 is high capacity
ARGO 7234582 P566245 is standard capacity; P566255 is high capacity
BOSCH-REXROTH R928016690
BOSCH-REXROTH R928016702
DENISON DE0411B8C03
DENISON DE0411V8C03
DENISON DE0410V3U03
DENISON DE0410B3U03
DIAGNETICS LPH539V03
DIAGNETICS LPG539V03
DIAGNETICS LPH539B03
DIAGNETICS LPG539B03
EPPENSTEINER 168300H3LL981XP
EPPENSTEINER 168300XH3SLS000V
EPPENSTEINER 168300XH3SLS000P
EPPENSTEINER 168300XH3XLS000V
EPPENSTEINER 168300XH3XLS000M
HILCO PH73912CGV P566245 is standard capacity; P566255 is high capacity
HILCO 386014033C
HILCO 386014032C
HILCO PH73914CG
MP FILTRI MP5212
PTI P83250GFV
SWIFT SF8300393UMV
SWIFT SF8300393UM
VICKERS V0411V8V03
VICKERS V0411V8C03
VICKERS V0411B8C03
