• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566228
1 1

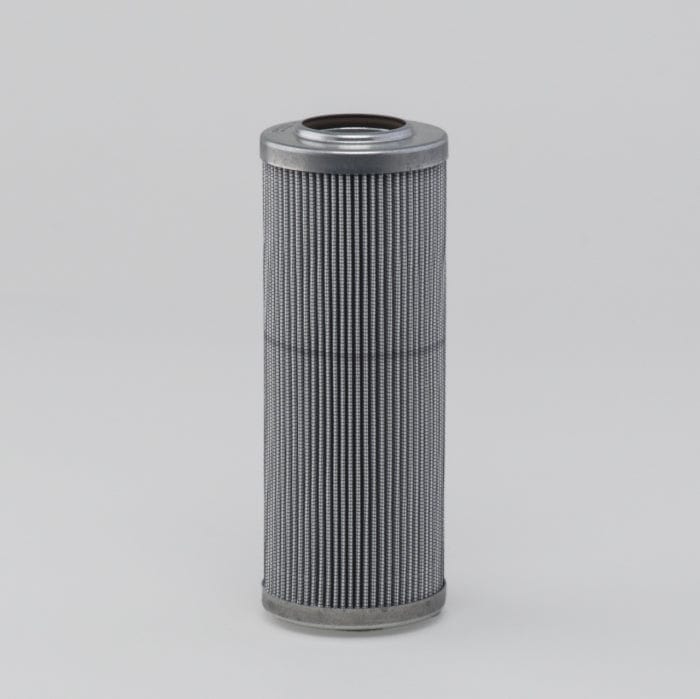

Hydraulic Filter, Cartridge Dt - Donaldson P566228

Hydraulic Filter, Cartridge Dt - Donaldson P566228

£112.57
£112.57
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566228

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.7 mm)
Inner Diameter 1.7 inch (43.2 mm)
Length 8.37 inch (212.7 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.7 mm (3.1 inch)
  • Inner Diameter: 43.2 mm (1.7 inch)
  • Length: 212.7 mm (8.37 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.227 m (9.06 inch)
  • Packaged Weight: 0.536 kg (1.18 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330174760

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9650825A
COMEX P9650D08N25
DENISON DE2051B2C20
EPPENSTEINER 169650H20LL212SP
MP FILTRI MP5504
VICKERS V2051B2C20
