• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566226
1 1

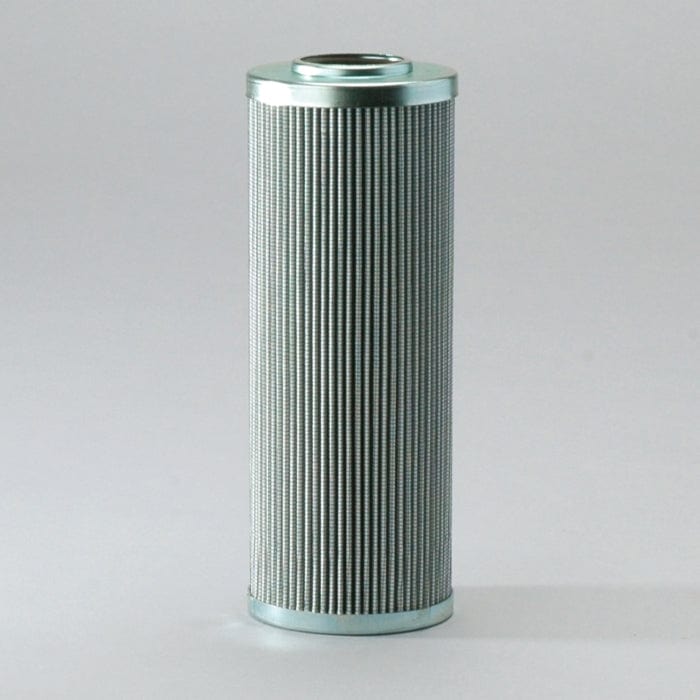

Hydraulic Filter, Cartridge Dt - Donaldson P566226

Hydraulic Filter, Cartridge Dt - Donaldson P566226

£115.87
£115.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566226

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.7 mm (3.1 inch)
  • Inner Diameter: 43.2 mm (1.7 inch)
  • Length: 212.7 mm (8.37 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.227 m (9.06 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.531 kg (1.17 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330174746

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I0688
CATERPILLAR 3I0688
CATERPILLAR 310688
DIAGNETICS LPN308V06
DIAGNETICS LPN308B06
GRAINGER 1XPU5
GRAINGER 52YT42
PACCAR Y05990402
PTI P96030HFV
PTI P96030HFB
TIM 310688
UNITED CENTRAL INDUSTRIAL SUPP 365718
VICKERS V2051B2V05
VICKERS V2051B2C05
