• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566223
1 1

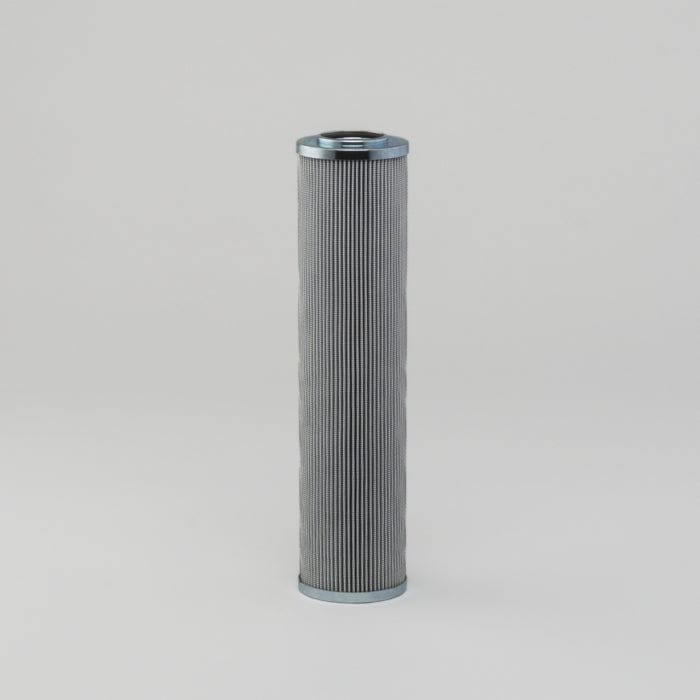

Hydraulic Filter, Cartridge Dt - Donaldson P566223

Hydraulic Filter, Cartridge Dt - Donaldson P566223

£85.19
£85.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566223

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 16.79 inch (426.5 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series HPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 426.5 mm (16.79 inch)
  • Efficiency Beta 1000: 25 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: HPK04
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.433 m (17.32 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.908 kg (2.00 lb)
  • Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330174715

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE96001625AV
BOSCH-REXROTH R928016975
DENISON DE6021V5C20
EPPENSTEINER 169600UH20SLE000V
EPPENSTEINER 169600UH20XLE000V
HILCO 383003048C
LHA LHE624BTA25SB
NORMAN ULTRAPOROUS HYU177
OMT CHP628F25XN
VICKERS V6021V5V20
VICKERS V6021V5C20
