• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566220
1 1

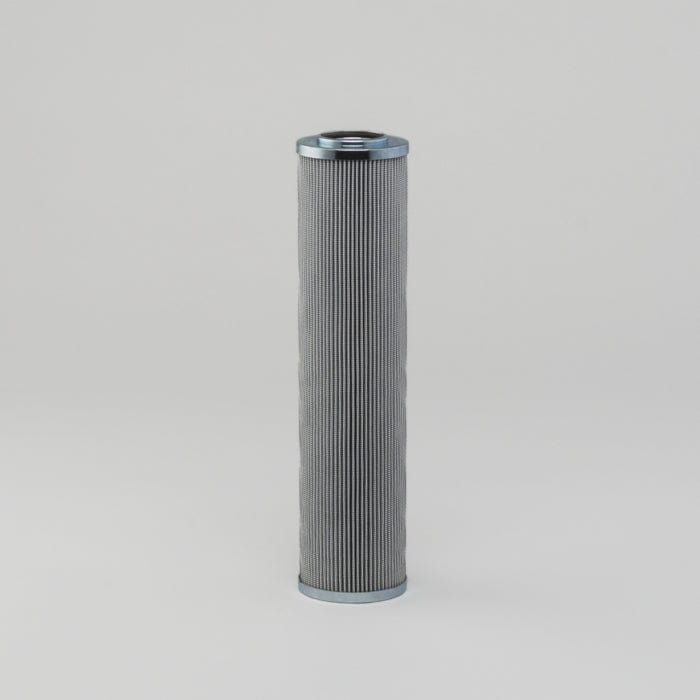

Hydraulic Filter, Cartridge Dt - Donaldson P566220

Hydraulic Filter, Cartridge Dt - Donaldson P566220

£86.07
£86.07
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566220

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 16.79 inch (426.5 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series HPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 426.5 mm (16.79 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: HPK04
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.433 m (17.32 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 1.208 kg (2.66 lb)
  • Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330174685

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE96001603AV
BEHRINGER BE96001602AV
BOSCH-REXROTH R928016963
DENISON DE6021V5C03
EPPENSTEINER 169600UH3XLE000V
EPPENSTEINER 169600UH3SLE000V
HILCO 383014017C
LHA LHE624BTA3SB
MOOG B645744V
MOOG B645744A
MP FILTRI MP4480
OMT CHP628F03XN
PTI HF3060GFV
VICKERS V6021V5V03
VICKERS V6021V5C03
