• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566217
1 1

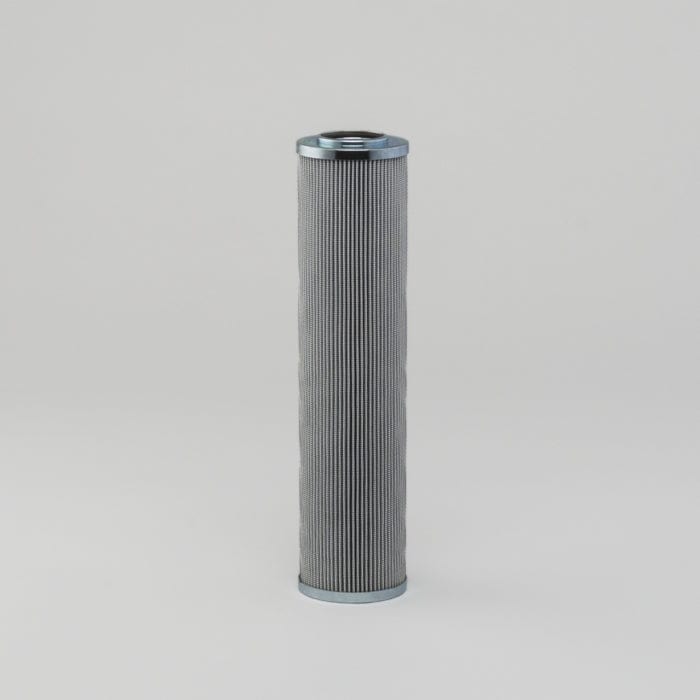

Hydraulic Filter, Cartridge Dt - Donaldson P566217

Hydraulic Filter, Cartridge Dt - Donaldson P566217

£70.67
£70.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566217

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 43.8 mm (1.72 inch)
  • Gasket ID: 41.2 mm (1.62 inch)
  • Overall Length: 327.8 mm (12.91 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • FPK04:
  • HPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.368 m (14.70 inch)
  • Packaged Weight: 0.745 kg (1.64 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Canada
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330174951

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GRAINGER 1XPN4
GRAINGER 52YT08
LHA LHE623BTA10SB
OMT CHP627F10XN

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
XCMG XDE130 - HAUL TRUCK - MTU 16V2000 -
