• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566214
1 1

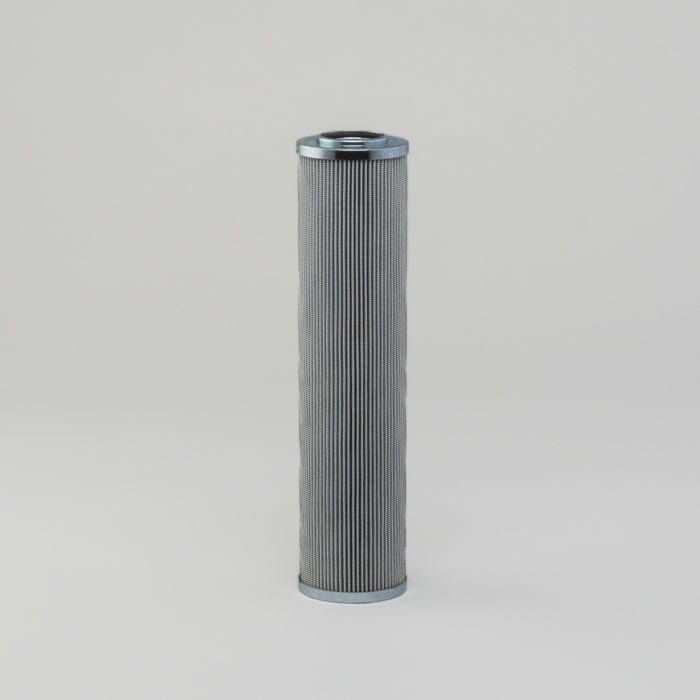

Hydraulic Filter, Cartridge Dt - Donaldson P566214

Hydraulic Filter, Cartridge Dt - Donaldson P566214

£94.13
£94.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566214

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 12.91 inch (327.8 mm)
Efficiency Beta 1000 4 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series W061, FPK04, HPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 327.8 mm (12.91 inch)
  • Efficiency Beta 1000: 4 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • FPK04:
  • HPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.368 m (14.70 inch)
  • Packaged Weight: 0.726 kg (1.60 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330175064

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE96001301A
HILCO 383016004C
VICKERS V6021V4C01
