• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566211
1 1

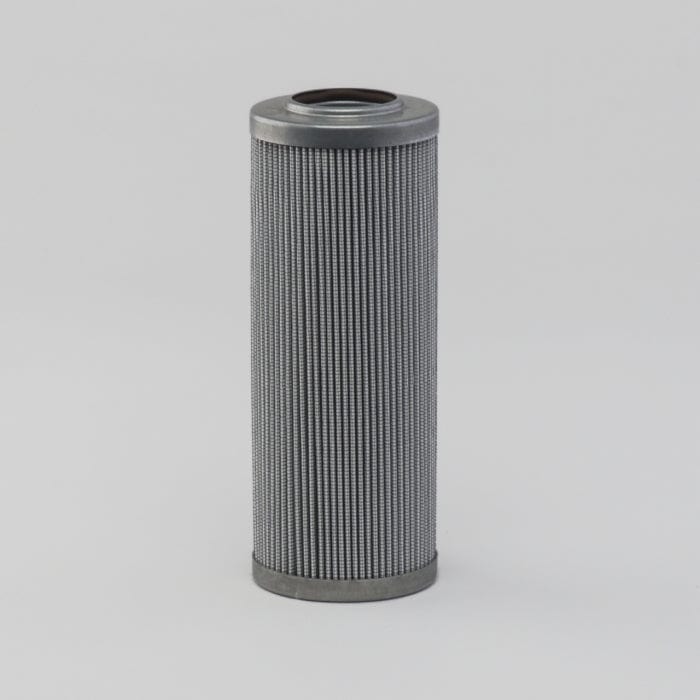

Hydraulic Filter, Cartridge Dt - Donaldson P566211

Hydraulic Filter, Cartridge Dt - Donaldson P566211

£93.76
£93.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566211

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 8.19 inch (207.9 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series W061, W350, HPK03, FPK04, HPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 207.9 mm (8.19 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • W350:
  • HPK03:
  • FPK04:
  • HPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 0.518 kg (1.14 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175033

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AIAG HF3051F
BEHRINGER BE9600806A
BEHRINGER BE9600806AV
BOMAG 853531151
BOSCH-REXROTH R928016965
DENISON DE6021V2C05
EPPENSTEINER 2HF31H6SLA000V
EPPENSTEINER 169600SH6SLE000V
EPPENSTEINER 169600SH6XLE000V
GRAINGER 1XPH9
GRAINGER 52YR78
HILCO 383012093C
MOOG 07168896N
MP FILTRI MP4465
OMT CHP626F06XN
ROLLS ROYCE R6659858
VICKERS V6021V2V05
VICKERS V6021V2C05

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
BOMAG MPH100R - COMPACTOR - - MPH100R -
