• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566208
1 1

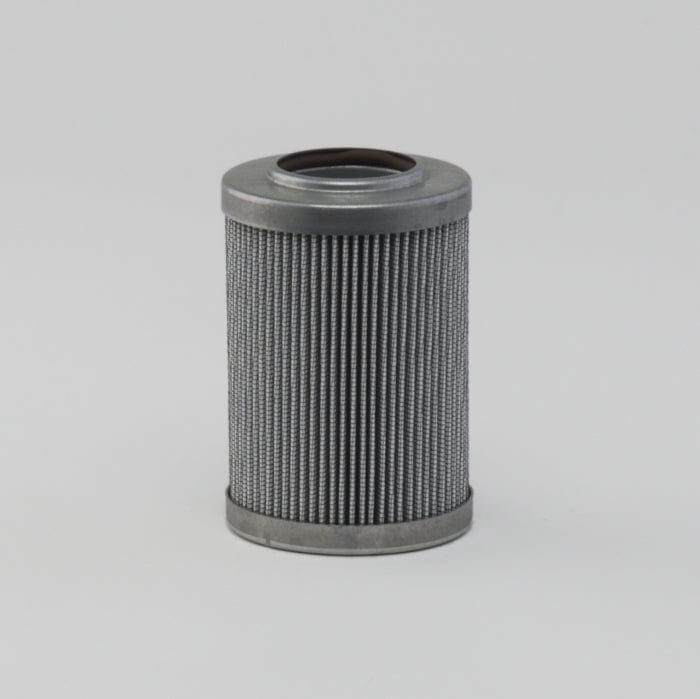

Hydraulic Filter, Cartridge Dt - Donaldson P566208

Hydraulic Filter, Cartridge Dt - Donaldson P566208

£43.70
£43.70
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566208

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 4.65 inch (118.1 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series W061, W350, FPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 118.1 mm (4.65 inch)
  • Efficiency Beta 1000: 25 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • W350:
  • FPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.085 m (3.40 inch)
  • Packaged Width: 0.085 m (3.40 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 0.354 kg (0.78 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330175002

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9600425AV
BOSCH-REXROTH R928016972
DENISON DE6020V1U25
DENISON DE6021V1C20
EPPENSTEINER 169600RH20SLE000V
EPPENSTEINER 169600RH20XLE000V
GRAINGER 52YR86
GRAINGER 1XPJ9
HILCO 383003042C
LHA LHE621BTA25SB
MP FILTRI MP4460
OMT CHP625F25XN
VICKERS V6021V1V20
VICKERS V6021V1C20
