• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566207
1 1

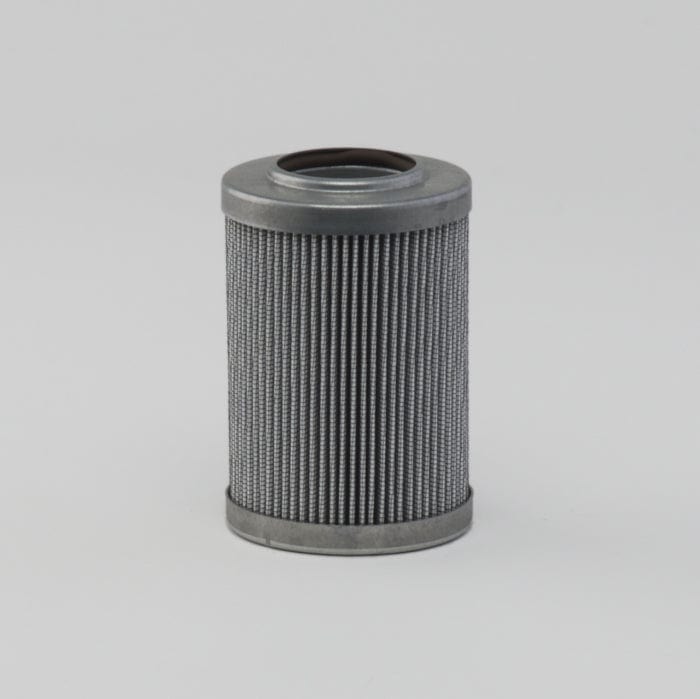

Hydraulic Filter, Cartridge Dt - Donaldson P566207

Hydraulic Filter, Cartridge Dt - Donaldson P566207

£47.80
£47.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566207

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 4.65 inch (118.1 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series W061, W350, FPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 118.1 mm (4.65 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • W350:
  • FPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.227 m (9.06 inch)
  • Packaged Weight: 0.359 kg (0.79 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330174999

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9600412AV
BOSCH-REXROTH R928016968
DENISON DE6020V1U10
DENISON DE6021V1C10
DENNIS 15D78
EPPENSTEINER 169600RH10SLE000V
EPPENSTEINER 169600RH10XLE000V
GRAINGER 52YT69
GRAINGER 1XPH6
GRAINGER 52YR75
HILCO 383011095C
LHA LHE621BTA10SB
MOOG B645751A
MOOG B645751V
MOOG 07160712N
MOOG 07160712A
OMT CHP625F10XN
PTI HF3015KFV
VICKERS V6021V1C10
VICKERS V6021V1V10
