• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566206
1 1

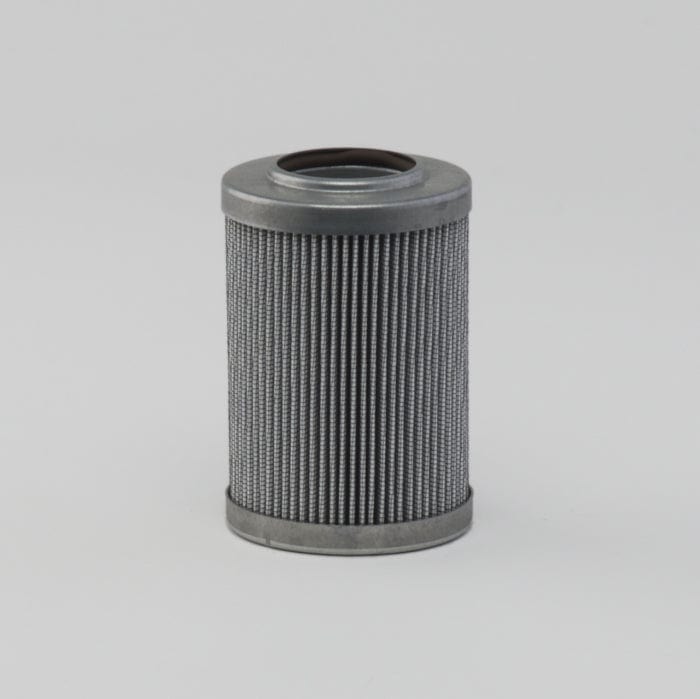

Hydraulic Filter, Cartridge Dt - Donaldson P566206

Hydraulic Filter, Cartridge Dt - Donaldson P566206

£45.08
£45.08
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566206

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.1 inch (78.84 mm)
Inner Diameter 1.62 inch (41.15 mm)
Overall Length 4.65 inch (118.1 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Series W061, W350, FPK04, W620
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.84 mm (3.1 inch)
  • Inner Diameter: 41.15 mm (1.62 inch)
  • Overall Length: 118.1 mm (4.65 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Series: W061
  • W350:
  • FPK04:
  • W620:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.236 m (9.45 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.350 kg (0.77 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421298090
  • UPC Code: 742330174982

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9600406AV
BOSCH-REXROTH R928016964
DENISON DE6021V1C05
EPPENSTEINER 169600RH6XLE000V
EPPENSTEINER 169600RH6SLE000V
GRAINGER 1XPJ7
GRAINGER 52YR84
HILCO 383012096C
MP FILTRI MP5233
OMT CHP625F06XN
PTI HF3015HFV
VICKERS V6021V1C05
