• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566196
1 1

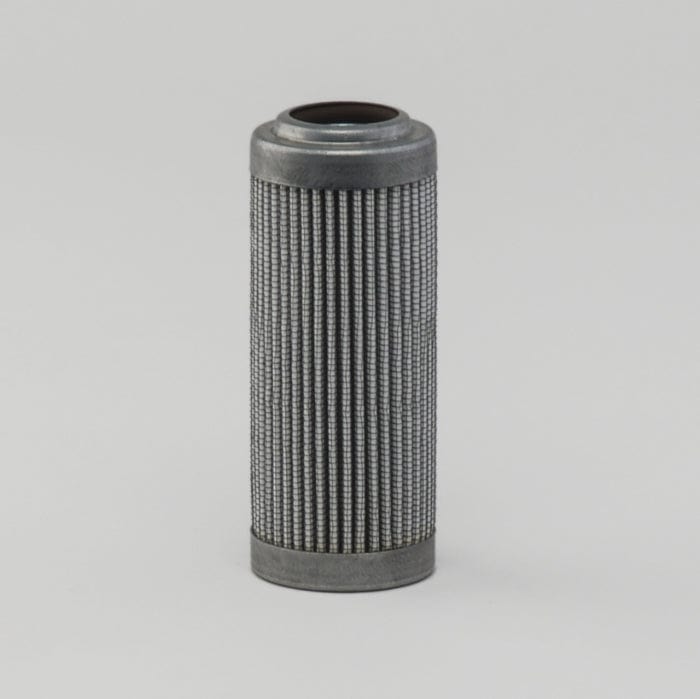

Hydraulic Filter, Cartridge Dt - Donaldson P566196

Hydraulic Filter, Cartridge Dt - Donaldson P566196

£40.38
£40.38
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566196

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 45 mm (1.77 inch)
  • Inner Diameter: 25.8 mm (1.02 inch)
  • Length: 112 mm (4.41 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 17.2 bar (249 psi)
  • Style: Cartridge
  • Series: HPK02
  • W440:
  • FPK02:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.058 m (2.30 inch)
  • Packaged Width: 0.058 m (2.30 inch)
  • Packaged Height: 0.125 m (5.00 inch)
  • Packaged Weight: 0.132 kg (0.29 lb)
  • Packaged Volume: 0.000 m3 (0.02 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330174883

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9020406AV
BEHRINGER BE9020401AV
BOSCH-REXROTH R928016866
DENISON DE3041V1C05
EPPENSTEINER 169020RH6SLE000V
EPPENSTEINER 169020RH6XLE000V
EPPENSTEINER 2HF21H6SLA000V
GRAINGER 52YR81
JLG 10866416
MOOG B645711A
MP FILTRI M1A06NV
MP FILTRI HP0652A06ANP01
MP FILTRI HP0652A06AN
OMT CHP282F06XN
SWIFT SF902046UMV
VICKERS V3042V1V05
VICKERS V3041V1V05
VICKERS V3041V1C05
