• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566195
1 1

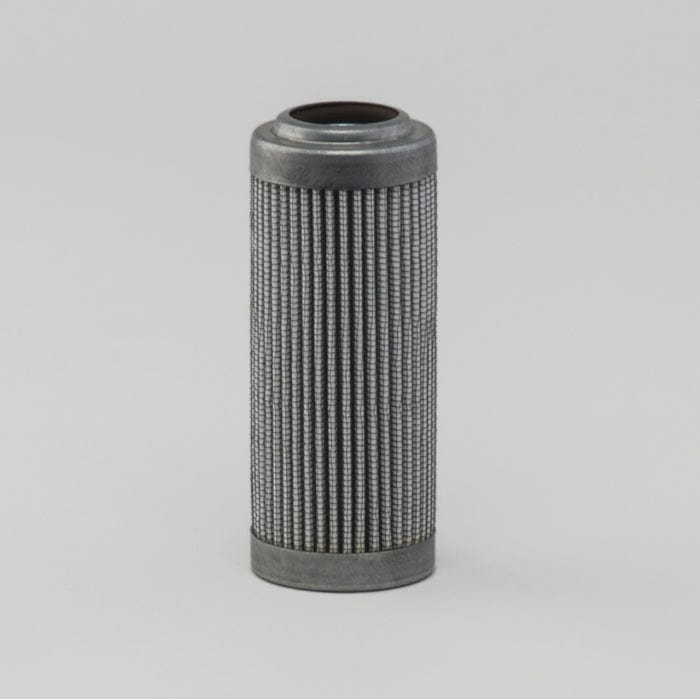

Hydraulic Filter, Cartridge Dt - Donaldson P566195

Hydraulic Filter, Cartridge Dt - Donaldson P566195

£40.47
£40.47
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566195

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 1.77 inch (45 mm)
Inner Diameter 0.96 inch (24.4 mm)
Overall Length 4.41 inch (112 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 249 psi (17.2 bar)
Style Cartridge
Series HPK02, W440, FPK02
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 45 mm (1.77 inch)
  • Inner Diameter: 24.4 mm (0.96 inch)
  • Overall Length: 112 mm (4.41 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 17.2 bar (249 psi)
  • Style: Cartridge
  • Series: HPK02
  • W440:
  • FPK02:
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.069 m (2.76 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.138 m (5.51 inch)
  • Packaged Weight: 0.136 kg (0.30 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330174876

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE9020403AV
BOSCH-REXROTH ABZFEN0040031XVB
BOSCH-REXROTH R928016864
DENISON DE3041VU03
DENISON DE3041V1C03
EPPENSTEINER 169020RH3SLE000V
EPPENSTEINER 169020RH3XLE000V
EPPENSTEINER 2HF21H3SLA000V
GRAINGER 1XPH8
GRAINGER 52YR77
LHA LHE282BTA3SB
MOOG 07160313N
MOOG 07160313A
MOOG B645701A
MP FILTRI M1A03NV
MP FILTRI HP0652A03ANP01
MP FILTRI HP0652A03AN
OMT CHP282F03XN
SWIFT SF902043UMV
VICKERS V3042V1V03
VICKERS V3041V1V03
VICKERS V3041V1C03
