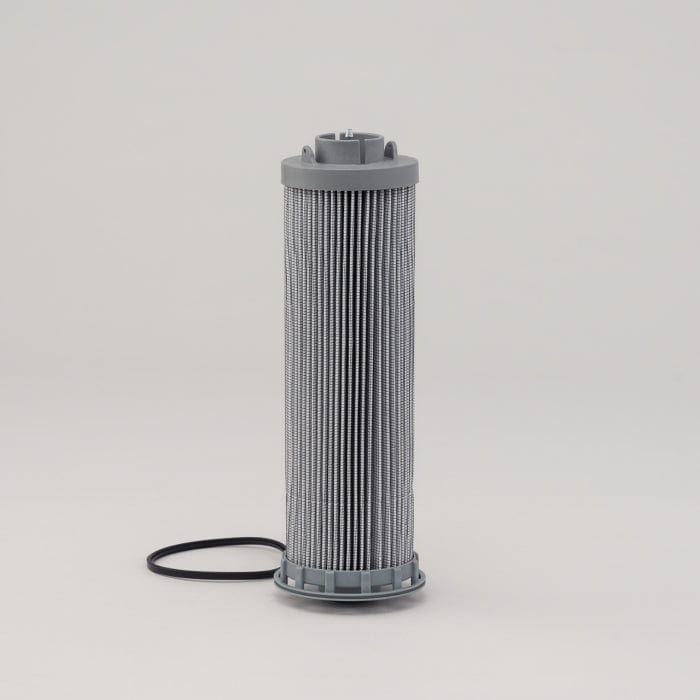

Hydraulic Filter, Cartridge - Donaldson P959142

Attributes

• Outer Diameter: 72.6 mm (2.86 inch)
• Inner Diameter: 21.5 mm (0.85 inch)
• Overall Length: 255.25 mm (10.05 inch)
• Efficiency Beta 1000: 12 micron
• Bypass Valve: Yes
• Bypass Valve Setting HR: 3.5 bar (51 psi)
• Collapse Burst: 21 bar (305 psi)
• Maximum Operating Temperature: 121 °C (250 °F)
• Media Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.34 FT
• Packaged Width: 0.34 FT
• Packaged Height: 0.85 FT
• Packaged Weight: 0.486 kg (1.07 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069095-02
• HTS Code: 8421298090
• UPC Code: 742330243992
