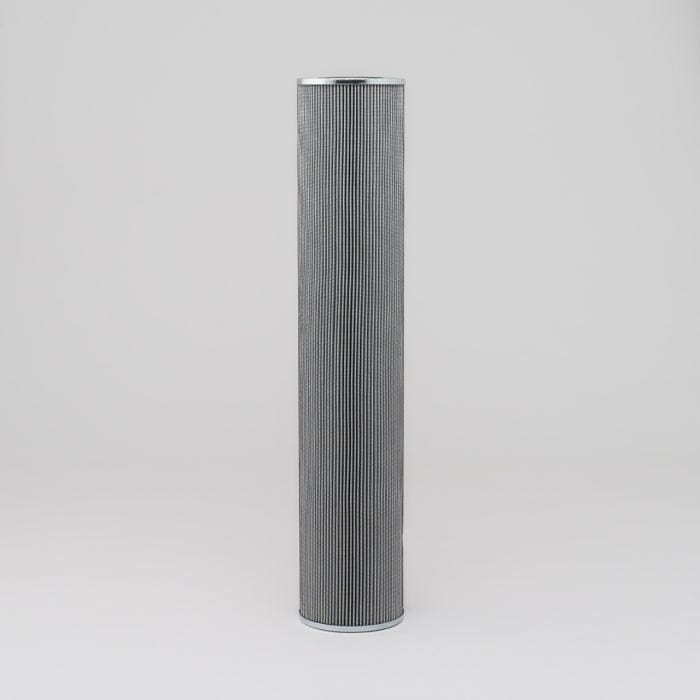

Hydraulic Filter, Cartridge - Donaldson P958436
Hydraulic Filter, Cartridge - Donaldson P958436
Regular price
£182.77
Regular price
Sale price
£182.77
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P958436
Hydraulic Filter, Cartridge| Outer Diameter | 4.65 inch (118 mm) |
| Inner Diameter | 2.34 inch (59.5 mm) |
| Length | 23.54 inch (598 mm) |
| Overall Length | 23.62 inch (600 mm) |
| Efficiency Beta 200 | 10 micron |
| Efficiency Beta 1000 | 12 micron |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Inner Diameter: 59.5 mm (2.34 inch)
- Length: 598 mm (23.54 inch)
- Overall Length: 600 mm (23.62 inch)
- Efficiency Beta 200: 10 micron
- Efficiency Beta 1000: 12 micron
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.158 m (6.30 inch)
- Packaged Width: 0.138 m (5.51 inch)
- Packaged Height: 0.650 m (25.98 inch)
- Packaged Weight: 2.720 kg (6.00 lb)
- Packaged Volume: 0.015 m3 (0.52 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330240175
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ARGO | V2126026 | |
| CATERPILLAR | 1097287 | |
| CATERPILLAR | 3617479 | |
| DEMAG | 41267512 | |
| NOELL | 140955230 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR M312 | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3054TA | - |
| CATERPILLAR M313C | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3054E | - |
| CATERPILLAR M313D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C4.4TA ACERT | - |
| CATERPILLAR M315 | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3054TA | - |
| CATERPILLAR M315C | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR M315D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C4.4TA ACERT | - |
| CATERPILLAR M316C | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3056E DIT ATAAC | - |
| CATERPILLAR M316D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR M318 | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3116T | - |
