• Donaldson Hydraulic Filter, Cartridge - Donaldson P767968
1 1

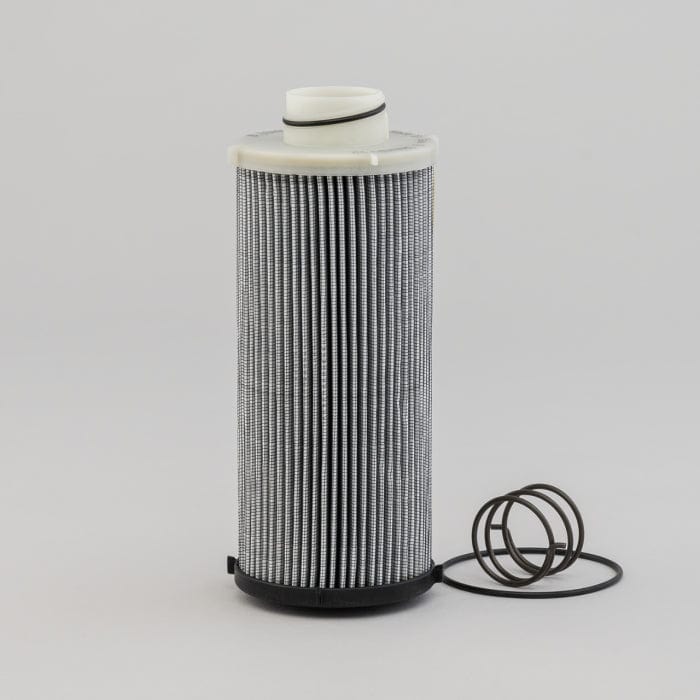

Hydraulic Filter, Cartridge - Donaldson P767968

Hydraulic Filter, Cartridge - Donaldson P767968

£41.71
£41.71
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P767968

Hydraulic Filter, Cartridge
Outer Diameter 4.19 inch (106.5 mm)
Inner Diameter 1.57 inch (40 mm)
Overall Length 9.33 inch (237 mm)
Efficiency Beta 200 11 micron
Efficiency Beta 1000 13 micron
Collapse Burst 145 psi (10 bar)
View full details

Specifications

Attributes

  • Outer Diameter: 106.5 mm (4.19 inch)
  • Inner Diameter: 40 mm (1.57 inch)
  • Overall Length: 237 mm (9.33 inch)
  • Efficiency Beta 200: 11 micron
  • Efficiency Beta 1000: 13 micron
  • Collapse Burst: 10 bar (145 psi)

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 0.788 kg (1.74 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330238325

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DEUTZ 244198160
NEW HOLLAND 84417139

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH PUMA 130 CVT 12/10 - 04/16 TRACTOR - - - -
CASE/CASE IH PUMA 145 CVT 12/10 - 12/14 TRACTOR - - - -
CASE/CASE IH PUMA 150 04/14 - 11/15 TRACTOR Tier 4b, Also valid for CVT - - -
CASE/CASE IH PUMA 150 CVT 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 165 CVT 05/15 - 01/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 185 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 185 CVT 04/14 - 10/15 TRACTOR Tier 4b - - -
CASE/CASE IH PUMA 200 CVT 04/14 - 09/15 TRACTOR Tier 4B - - -
CASE/CASE IH PUMA 200 CVT 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 220 CVT 04/14 - 06/15 TRACTOR Tier 4B - - -
CASE/CASE IH PUMA 220 CVT 05/15 - 10/17 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH Puma 165 04/14 - 10/15 TRACTOR Tier 4b, Also valid for CVT - - -
NEW HOLLAND T7.170 Autocommand 12/10 - 04/16 TRACTOR - - - -
