• Donaldson Hydraulic Filter, Cartridge - Donaldson P767671
1 1

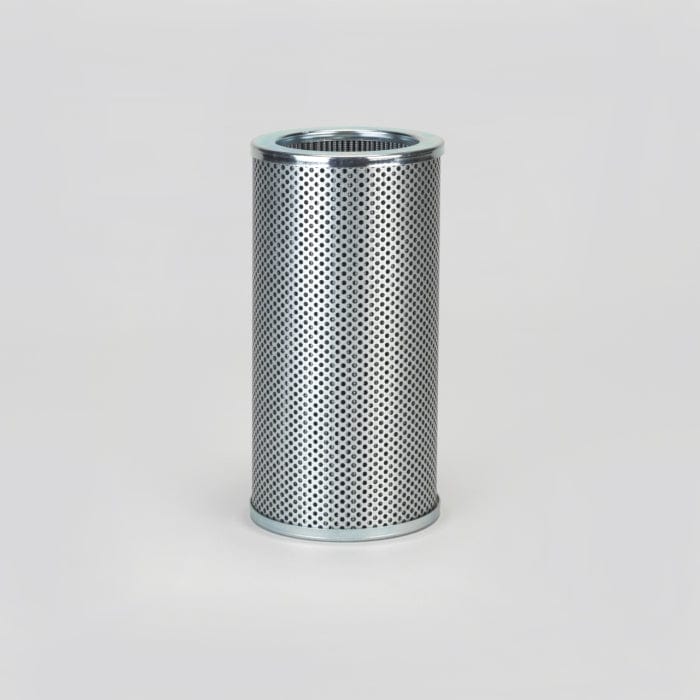

Hydraulic Filter, Cartridge - Donaldson P767671

Hydraulic Filter, Cartridge - Donaldson P767671

£58.63
£58.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P767671

Hydraulic Filter, Cartridge
Outer Diameter 4.96 inch (126 mm)
Gasket OD 3.62 inch (92 mm)
Overall Length 10.00 inch (254 mm)
Efficiency Beta 200 9 micron
Efficiency Beta 1000 11 micron
Media Type Synthetic
Primary Application Sandvik underground mining equipment
View full details

Specifications

Attributes

  • Outer Diameter: 126 mm (4.96 inch)
  • Gasket OD: 92 mm (3.62 inch)
  • Overall Length: 254 mm (10.00 inch)
  • Efficiency Beta 200: 9 micron
  • Efficiency Beta 1000: 11 micron
  • Media Type: Synthetic
  • Primary Application: Sandvik underground mining equipment

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 1.090 kg (2.40 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330229811

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7235854
SANDVIK 73833256
TAMROCK 73833256

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
SANDVIK DL311 - DRILLING EQUIPMENT - DEUTZ TCD2012 -
