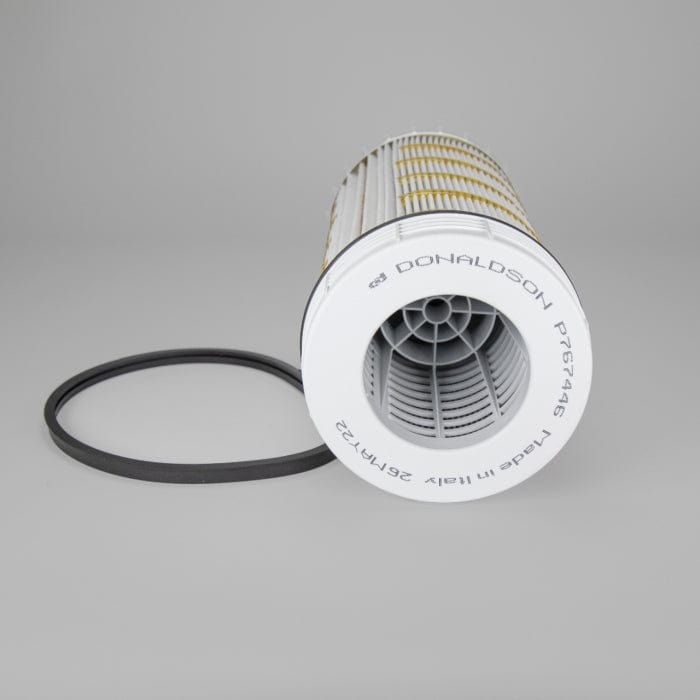

Hydraulic Filter, Cartridge - Donaldson P767446

Hydraulic Filter, Cartridge - Donaldson P767446

£124.16
£124.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P767446

Hydraulic Filter, Cartridge
Outer Diameter 5.78 inch (146.7 mm)
Inner Diameter 3.19 inch (81 mm)
Overall Length 12.70 inch (322.5 mm)
Efficiency Beta 200 21 micron
Efficiency Beta 1000 32 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting LR 10 psi (0.7 bar)
Collapse Burst 73 psi (5 bar)
Style Cartridge
Media Type Synthetic
Primary Application CNH 47617642
View full details

Specifications

Attributes

  • Outer Diameter: 146.7 mm (5.78 inch)
  • Inner Diameter: 81 mm (3.19 inch)
  • Overall Length: 322.5 mm (12.70 inch)
  • Efficiency Beta 200: 21 micron
  • Efficiency Beta 1000: 32 micron
  • Efficiency Test Std: ISO 16889
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.7 bar (10 psi)
  • Collapse Burst: 5 bar (73 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: CNH 47617642

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.354 m (14.17 inch)
  • Packaged Weight: 0.635 kg (1.40 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330989425

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 47617642
CASE/CASE IH 47617638
NEW HOLLAND 73325013
NEW HOLLAND 87708150
NEW HOLLAND 47617642
NEW HOLLAND 47617638

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH PUMA 145 1/11 - 12/14 TRACTOR - - - -
CASE/CASE IH PUMA 145 CVT 12/10 - 12/14 TRACTOR - - - -
CASE/CASE IH PUMA 150 09/17 TRACTOR Multicontroller - Tier 4b - My18 (made In Basildon) - - -
CASE/CASE IH PUMA 150 04/14 - 11/15 TRACTOR Tier 4b, Also valid for CVT - - -
CASE/CASE IH PUMA 150 01/20 TRACTOR Stage V (made In Basildon) - - -
CASE/CASE IH PUMA 150 CVT 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 150 CVT 09/17 TRACTOR Tier 4b - My18 - - -
CASE/CASE IH PUMA 150 CVX 01/20 TRACTOR Stage V - made In Basildon - - -
CASE/CASE IH PUMA 165 01/20 TRACTOR Multicontroller - Stage V (made In Basildon) - - -
CASE/CASE IH PUMA 165 01/20 TRACTOR Stage V (made In Basildon) - - -
CASE/CASE IH PUMA 165 CVT 09/17 TRACTOR Tier 4b - My18 - - -
CASE/CASE IH PUMA 165 CVT 05/15 - 01/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 165 CVX 01/20 TRACTOR Stage V made In Basildon - - -
CASE/CASE IH PUMA 185 09/17 TRACTOR Tier 4b - made In Basildon - MY18 - - -
CASE/CASE IH PUMA 185 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 185 05/15 - 01/18 TRACTOR Tier 4b - My15 (made In Basildon) - - -
CASE/CASE IH PUMA 185 12/10 - 08/15 TRACTOR - - - -
CASE/CASE IH PUMA 185 09/19 TRACTOR Stage V - - -
CASE/CASE IH PUMA 185 CVT 04/14 - 10/15 TRACTOR Tier 4b - - -
CASE/CASE IH PUMA 200 05/15 - 01/18 TRACTOR Tier 4b - My15 (made In Basildon) - - -
CASE/CASE IH PUMA 200 12/10 - 11/15 TRACTOR - - - -
CASE/CASE IH PUMA 200 09/17 TRACTOR Tier 4b (made In Basildon) - My 18 - - -
CASE/CASE IH PUMA 200 CVT 09/19 TRACTOR Stage V - - -
CASE/CASE IH PUMA 200 CVT 04/14 - 09/15 TRACTOR Tier 4B - - -
CASE/CASE IH PUMA 200 CVT 05/15 - 02/18 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 220 05/15 - 11/17 TRACTOR Tier 4b - My15 (made In Basildon) - - -
CASE/CASE IH PUMA 220 09/17 TRACTOR Tier 4b (made In Basildon) - My18 - - -
CASE/CASE IH PUMA 220 CVT 05/15 - 10/17 TRACTOR Tier 4b - My15 - - -
CASE/CASE IH PUMA 220 CVT 04/14 - 06/15 TRACTOR Tier 4B - - -
CASE/CASE IH PUMA 220 CVT 09/19 TRACTOR Stage V - - -
CASE/CASE IH Puma 165 Tier 4b - My18 (made In Basildon) TRACTOR Tier 4b - My18 (made In Basildon) - - -
CASE/CASE IH Puma 165 01/09 - 10/18 TRACTOR Serial Number Z*be 40001 --> 50000 And 60001 --> ... - - -
CASE/CASE IH Puma 165 04/14 - 10/15 TRACTOR Tier 4b, Also valid for CVT - - -
NEW HOLLAND T6.120 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4A
NEW HOLLAND T6.140 - TRACTOR T6 SERIES, AUTOCOMMAND FPT INDUSTRIAL NEF TIER 4
NEW HOLLAND T6.140 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4A
NEW HOLLAND T6.150 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4
NEW HOLLAND T6.155 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4A
NEW HOLLAND T6.160 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4
NEW HOLLAND T6.165 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4A
NEW HOLLAND T6.175 - TRACTOR T6 SERIES FPT INDUSTRIAL NEF TIER 4A
NEW HOLLAND T6010 - TRACTOR T6000 SERIES NEW HOLLAND NEF445T/MM1 -
NEW HOLLAND T6030 - TRACTOR T6000 SERIES, POWER COMMAND NEW HOLLAND NEF667TA -
NEW HOLLAND T6050 - TRACTOR T6000 SERIES NEW HOLLAND NEF667TA -
NEW HOLLAND T6070 - TRACTOR T6000 SERIES NEW HOLLAND NEF667TA -
NEW HOLLAND T6080 - TRACTOR T6000 SERIES, POWER COMMAND NEW HOLLAND NEF667TA -
NEW HOLLAND T6090 - TRACTOR T6000 SERIES, POWER COMMAND NEW HOLLAND NEF667TA -
NEW HOLLAND T7.170 Autocommand 12/10 - 04/16 TRACTOR - - - -
NEW HOLLAND T7030 - TRACTOR - FPT INDUSTRIAL N67ENT -
NEW HOLLAND T7030 - TRACTOR T7000 SERIES NEW HOLLAND NEF667TA/EBN -
NEW HOLLAND T7040 - TRACTOR T7000 SERIES NEW HOLLAND NEF667TA/EBE -
NEW HOLLAND T7040 - TRACTOR - FPT INDUSTRIAL N67ENT -
NEW HOLLAND T7050 - TRACTOR T7000 SERIES NEW HOLLAND NEF667TA/EBC -
NEW HOLLAND T7050 - TRACTOR - FPT INDUSTRIAL N67ENT -
NEW HOLLAND T7060 - TRACTOR T7000 SERIES NEW HOLLAND NEF667TA/EBH -
NEW HOLLAND T7060 - TRACTOR - FPT INDUSTRIAL N67ENT -
NEW HOLLAND T7070 - TRACTOR T7000 SERIES NEW HOLLAND NEF -
