• Donaldson Hydraulic Filter, Cartridge - Donaldson P766959
1 1

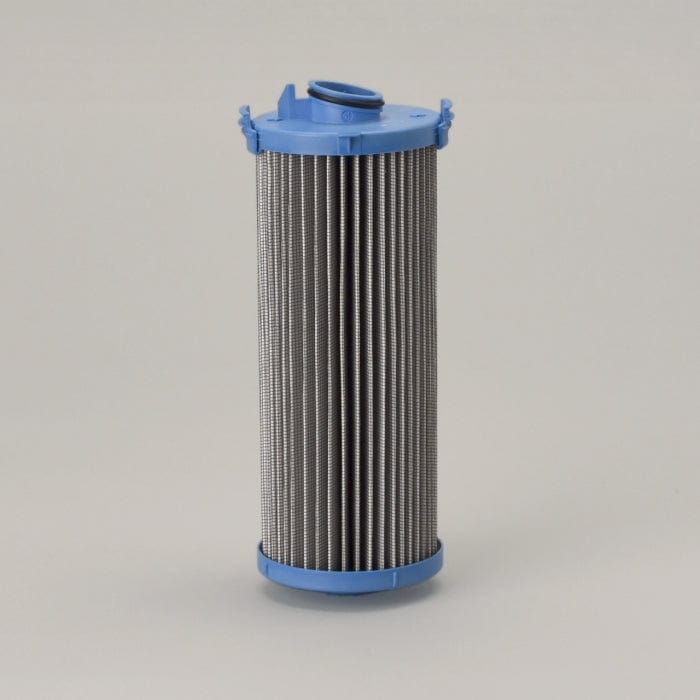

Hydraulic Filter, Cartridge - Donaldson P766959

Hydraulic Filter, Cartridge - Donaldson P766959

£53.15
£53.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P766959

Hydraulic Filter, Cartridge
Outer Diameter 3.64 inch (92.4 mm)
Inner Diameter 1.32 inch (33.5 mm)
Length 8.23 inch (209 mm)
Overall Length 8.90 inch (226.1 mm)
Efficiency Beta 1000 11 micron
Efficiency Test Std ISO 16889
Collapse Burst 145 psi (10 bar)
Maximum Operating Temperature 250 °F (121 °C)
Type Full-Flow
Style Cartridge
Series FLK90
Media Brand Synteq XP™
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 92.4 mm (3.64 inch)
  • Inner Diameter: 33.5 mm (1.32 inch)
  • Length: 209 mm (8.23 inch)
  • Overall Length: 226.1 mm (8.90 inch)
  • Efficiency Beta 1000: 11 micron
  • Efficiency Test Std: ISO 16889
  • Collapse Burst: 10 bar (145 psi)
  • Maximum Operating Temperature: 121 °C (250 °F)
  • Type: Full-Flow
  • Style: Cartridge
  • Series: FLK90
  • Media Brand: Synteq XP™
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.480 kg (1.06 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 84212980 90
  • UPC Code: 742330974063

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DANA 4220427
DANA TK4220427
KONECRANES 53344288
SANDVIK BG00736562
