• Donaldson Hydraulic Filter, Cartridge - Donaldson P766811
1 1

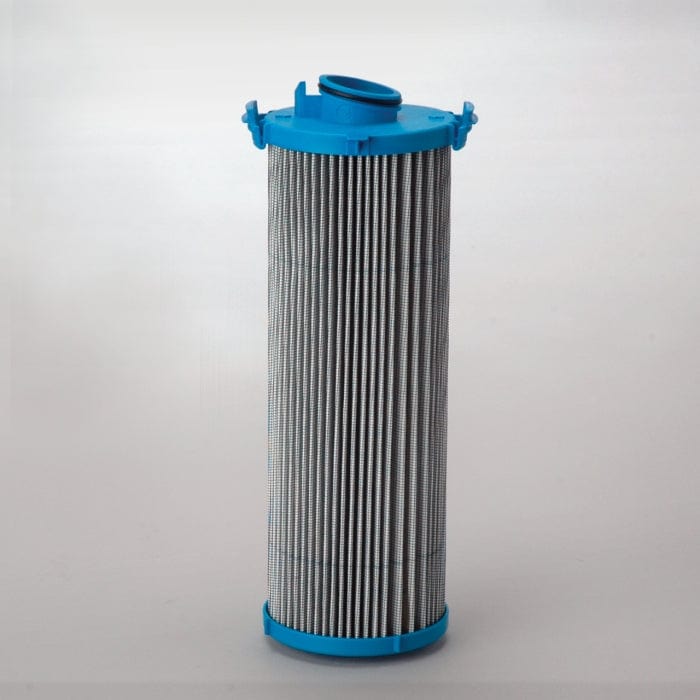

Hydraulic Filter, Cartridge - Donaldson P766811

Hydraulic Filter, Cartridge - Donaldson P766811

£61.81
£61.81
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P766811

Hydraulic Filter, Cartridge
Outer Diameter 3.78 inch (96 mm)
Inner Diameter 1.61 inch (41 mm)
Length 10.43 inch (265 mm)
Outlet Diameter 1.61 inch (41 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FLK110
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 96 mm (3.78 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 265 mm (10.43 inch)
  • Outlet Diameter: 41 mm (1.61 inch)
  • Efficiency Beta 1000: 11 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FLK110
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.128 m (5.12 inch)
  • Packaged Width: 0.128 m (5.12 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 0.790 kg (1.74 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330974735

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DANA 4222493
DANA 4221160
SANDVIK BG00729292
