• Donaldson Hydraulic Filter, Cartridge - Donaldson P763271
1 1

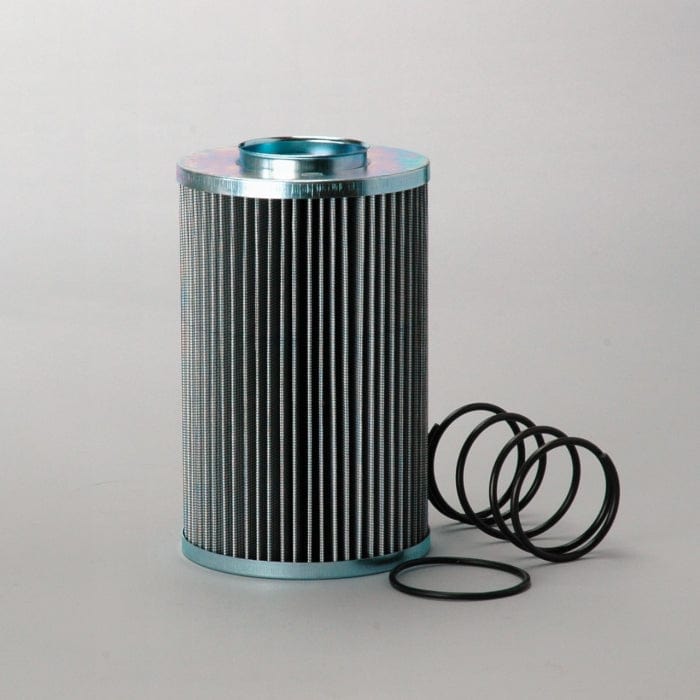

Hydraulic Filter, Cartridge - Donaldson P763271

Hydraulic Filter, Cartridge - Donaldson P763271

£48.56
£48.56
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P763271

Hydraulic Filter, Cartridge
Outer Diameter 5.08 inch (129 mm)
Inner Diameter 2.51 inch (63.7 mm)
Length 7.99 inch (203 mm)
Efficiency Beta 200 9 micron
Efficiency Beta 1000 11 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 129 mm (5.08 inch)
  • Inner Diameter: 63.7 mm (2.51 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 200: 9 micron
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.150 m (6.00 inch)
  • Packaged Height: 0.268 m (10.70 inch)
  • Packaged Weight: 1.091 kg (2.41 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330129166

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MODINA RE100FD1
MP FILTRI MF4002A10HB
