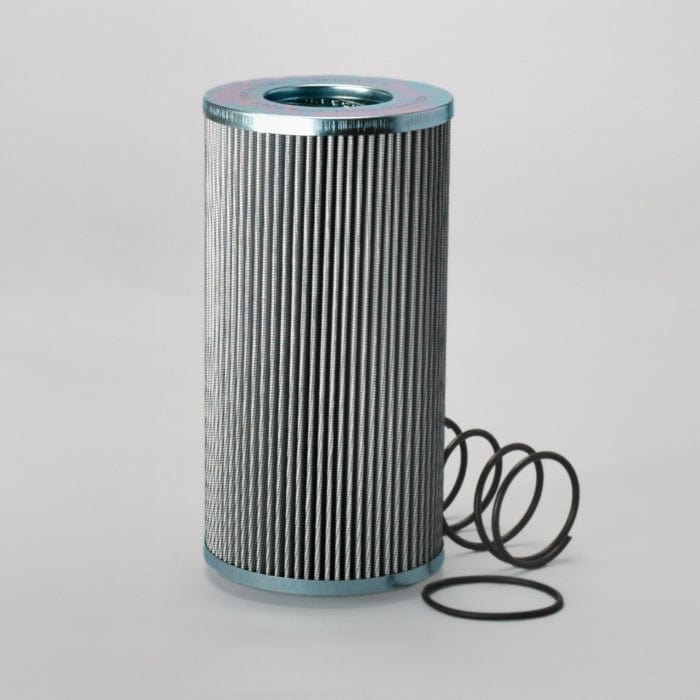

Hydraulic Filter, Cartridge - Donaldson P763258

Hydraulic Filter, Cartridge - Donaldson P763258

£46.28
£46.28
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P763258

Hydraulic Filter, Cartridge
Outer Diameter 5.08 inch (129 mm)
Inner Diameter 2.56 inch (65 mm)
Length 15.75 inch (400 mm)
Efficiency Beta 75 25 micron
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 129 mm (5.08 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 400 mm (15.75 inch)
  • Efficiency Beta 75: 25 micron
  • Efficiency Beta 200: 18 micron
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.144 m (5.75 inch)
  • Packaged Width: 0.144 m (5.75 inch)
  • Packaged Height: 0.413 m (16.50 inch)
  • Packaged Weight: 1.891 kg (4.17 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330129036

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI MF7501A25NBP01
MP FILTRI MF7501A25HBP01
MP FILTRI MF7501A25HB
MP FILTRI MF7501A25HB
MP FILTRI MF7501A25NB
