• Donaldson Hydraulic Filter, Cartridge - Donaldson P760055
1 1

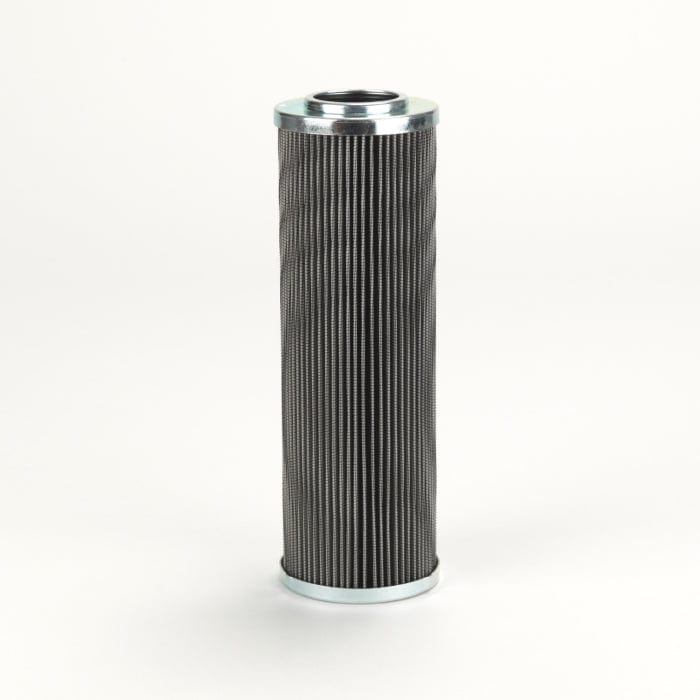

Hydraulic Filter, Cartridge - Donaldson P760055

Hydraulic Filter, Cartridge - Donaldson P760055

£44.30
£44.30
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P760055

Hydraulic Filter, Cartridge
Outer Diameter 3.15 inch (80 mm)
Inner Diameter 1.59 inch (40.4 mm)
Length 9.24 inch (234.6 mm)
Gasket ID 1.57 inch (40 mm)
Overall Length 9.43 inch (239.4 mm)
Bypass Valve No
Collapse Burst 290 psi (20 bar)
Maximum Operating Temperature 248 °F (120 °C)
Style Cartridge
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Outer Diameter: 80 mm (3.15 inch)
  • Inner Diameter: 40.4 mm (1.59 inch)
  • Length: 234.6 mm (9.24 inch)
  • Gasket ID: 40 mm (1.57 inch)
  • Overall Length: 239.4 mm (9.43 inch)
  • Bypass Valve: No
  • Collapse Burst: 20 bar (290 psi)
  • Maximum Operating Temperature: 120 °C (248 °F)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.760 kg (1.68 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330125489

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI HP3202M60ANP01

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ING. BONFIGLIOLI Squalo 4000 - SCRAPER - CATERPILLAR 6 cyl 440 HP -
