• Donaldson Hydraulic Filter, Cartridge - Donaldson P581465
1 1

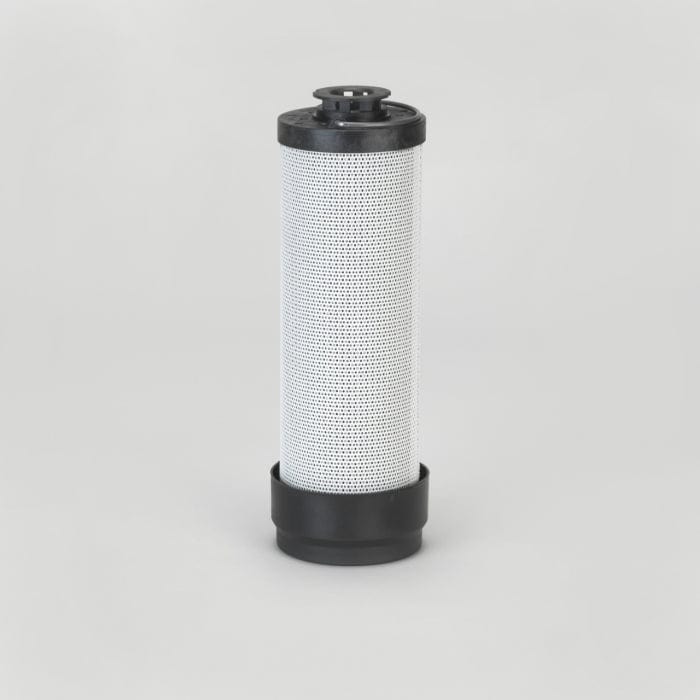

Hydraulic Filter, Cartridge - Donaldson P581465

Hydraulic Filter, Cartridge - Donaldson P581465

£89.47
£89.47
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P581465

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 88 mm (3.46 inch)
  • Inner Diameter: 46 mm (1.81 inch)
  • Length: 276 mm (10.87 inch)
  • Efficiency Beta 1000: 12 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Type: Synthetic
  • Primary Application: Hydac 0210R010 Series

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.295 m (11.81 inch)
  • Packaged Weight: 1.022 kg (2.25 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330237359

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7242668
BROCKWAY 230100069
BROCKWAY 0230100069
DEUTZ 090003061
DEUTZ 90003061
HYSTER 1624654
HYSTER 1707195
HYSTER 4000998
KRAMER 1000109140
KRAMER 1100010914E10
KRAMER 11000109140
YALE 580070556
YALE 582002948
YALE 582005335

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HYSTER H 5.0 FT - FORKLIFT - KUBOTA V3600T -
HYSTER H 5.00 FT - FORKLIFT - CUMMINS B45RGT -
HYSTER H 5.5 FT - FORKLIFT - CUMMINS B3.3 -
YALE GDP40VX5 - FORKLIFT - CUMMINS GDP40VX5 -
YALE GDP40VX6 - FORKLIFT - CUMMINS QSB 3.3 -
