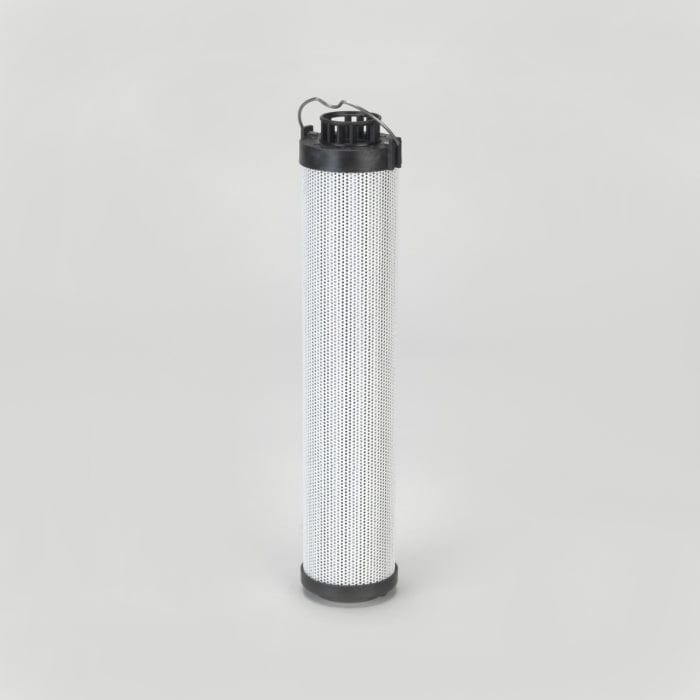

Hydraulic Filter, Cartridge - Donaldson P581464

Hydraulic Filter, Cartridge - Donaldson P581464

£64.20
£64.20
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P581464

Hydraulic Filter, Cartridge
Outer Diameter 2.36 inch (60 mm)
Inner Diameter 1.42 inch (36 mm)
Inner Diameter 2 2.68 inch (68 mm)
Length 11.61 inch (295 mm)
Efficiency Beta 1000 12 micron
Bypass Valve Yes
Bypass Valve Setting LR 44 psi (3 bar)
Collapse Burst 290 psi (20 bar)
Media Type Synthetic
Primary Application Hydac 0185R010 Series
View full details

Specifications

Attributes

  • Outer Diameter: 60 mm (2.36 inch)
  • Inner Diameter: 36 mm (1.42 inch)
  • Inner Diameter 2: 68 mm (2.68 inch)
  • Length: 295 mm (11.61 inch)
  • Efficiency Beta 1000: 12 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Type: Synthetic
  • Primary Application: Hydac 0185R010 Series

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 0.606 kg (1.34 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-08
  • HTS Code: 8421298090
  • UPC Code: 742330237342

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3792889
JLG 7024375
MASSEY FERGUSON 4270654M1
MECALAC 605A0035
NORMET 57624780
TEREX 5368633680
TEREX 40504412
TEREX 48348012
TEREX 5368655680
TICO TRACTORS 4204381
WACKER NEUSON 1000318994
WACKER NEUSON 2521407
WACKER NEUSON 1000004556
WACKER NEUSON 2521406
WACKER NEUSON 2521405
WACKER NEUSON 2521408

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 301.4C - EXCAVATOR COMPACT - YANMAR 3TNV76 -
CATERPILLAR 301.7D - EXCAVATOR COMPACT - YANMAR 3TNV76 -
CATERPILLAR 302.2D - EXCAVATOR COMPACT - YANMAR 3TNV76 -
CATERPILLAR 302.4D - EXCAVATOR COMPACT - YANMAR 3TNV76 -
CATERPILLAR 302.7D - EXCAVATOR COMPACT - YANMAR 3TNV76 -
