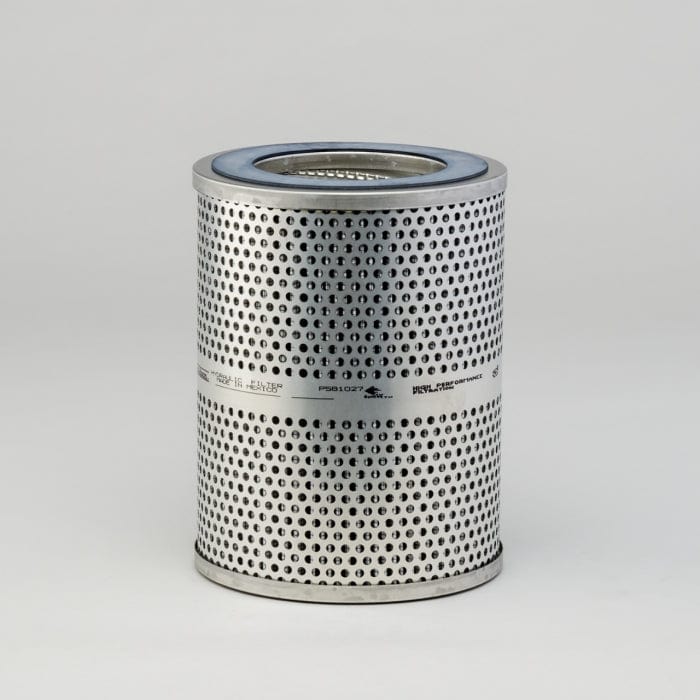

Hydraulic Filter, Cartridge - Donaldson P581027

Hydraulic Filter, Cartridge - Donaldson P581027

£73.13
£73.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P581027

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 173.8 mm (6.84 inch)
  • Inner Diameter: 107.3 mm (4.22 inch)
  • Length: 225.6 mm (8.88 inch)
  • Overall Length: 228.6 mm (9 inch)
  • Efficiency Beta 1000: 5 micron
  • Efficiency Test Std: ISO 16889
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Media Type: Synteq XP

Packaged Dimensions

  • Packaged Length: 0.188 m (7.50 inch)
  • Packaged Width: 0.188 m (7.50 inch)
  • Packaged Height: 0.244 m (9.75 inch)
  • Packaged Weight: 1.961 kg (4.32 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330234112

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 2433758

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 587R - PIPE LAYER 500 SERIES CATERPILLAR 3406C DITA -
CATERPILLAR 587T - PIPE LAYER 500 SERIES CATERPILLAR C15 ACERT -
CATERPILLAR 793D - DUMP TRUCK 700 SERIES CATERPILLAR 3516BTA -
CATERPILLAR 993K - LOADER WHEELED 900 SERIES CATERPILLAR C32TA ACERT -
CATERPILLAR 994K - LOADER WHEELED 900 SERIES CATERPILLAR 3516E -
CATERPILLAR D10T - TRACTOR TRACKED D SERIES CATERPILLAR C27 ACERT -
CATERPILLAR D11T - TRACTOR TRACKED D SERIES CATERPILLAR C32 ACERT -
