• Donaldson Hydraulic Filter, Cartridge - Donaldson P580604
1 1

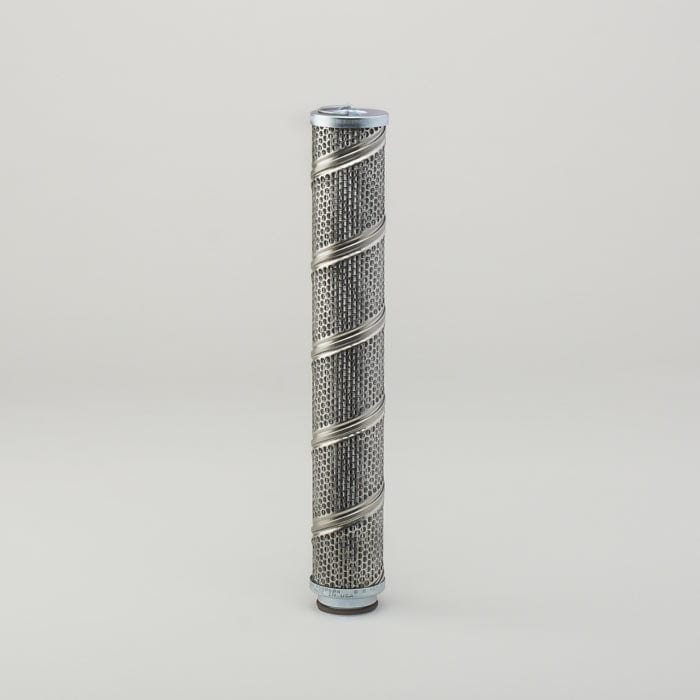

Hydraulic Filter, Cartridge - Donaldson P580604

Hydraulic Filter, Cartridge - Donaldson P580604

£104.15
£104.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P580604

Hydraulic Filter, Cartridge
Seal Material Viton
Outer Diameter 2.12 inch (53.9 mm)
Inlet Diameter 0.98 inch (24.99 mm)
Overall Length 13.89 inch (352.83 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 53.9 mm (2.12 inch)
  • Inlet Diameter: 24.99 mm (0.98 inch)
  • Overall Length: 352.83 mm (13.89 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.30 FT
  • Packaged Height: 1.47 FT
  • Packaged Weight: 0.440 kg (0.97 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330236529

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FILPRO FP10231939
