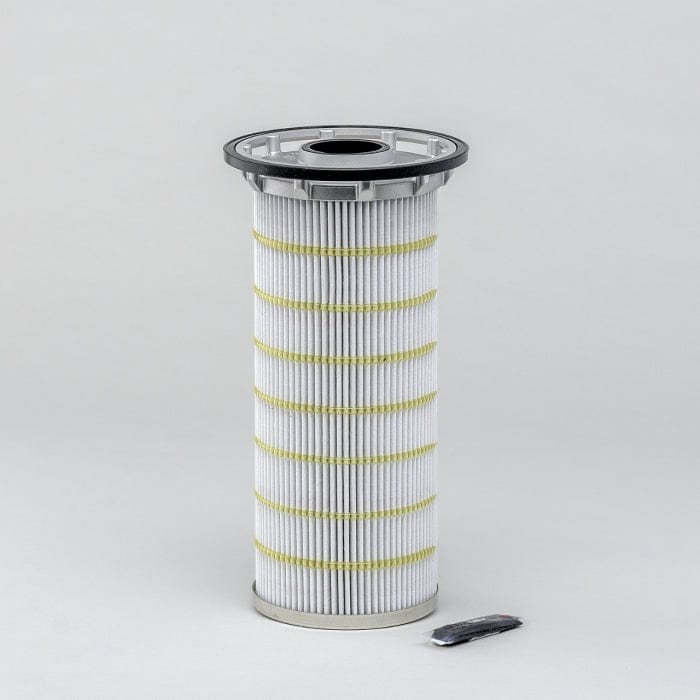

Hydraulic Filter, Cartridge - Donaldson P580316

Hydraulic Filter, Cartridge - Donaldson P580316

£130.91
£130.91
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P580316

Hydraulic Filter, Cartridge
Seal Material Nitrile
Outer Diameter 5.76 inch (146.2 mm)
Inner Diameter 1.73 inch (43.9 mm)
Length 11.17 inch (283.7 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 350 psi (24.1 bar)
View full details

Specifications

Attributes

  • Seal Material: Nitrile
  • Outer Diameter: 146.2 mm (5.76 inch)
  • Inner Diameter: 43.9 mm (1.73 inch)
  • Length: 283.7 mm (11.17 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 24.1 bar (350 psi)

Packaged Dimensions

  • Packaged Length: 0.160 m (6.40 inch)
  • Packaged Width: 0.160 m (6.40 inch)
  • Packaged Height: 0.313 m (12.50 inch)
  • Packaged Weight: 1.133 kg (2.50 lb)
  • Packaged Volume: 450.92 IN3

Other Information

  • Country of Origin: United States
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330232514

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JOHN DEERE RE573817
JOHN DEERE RE345391
