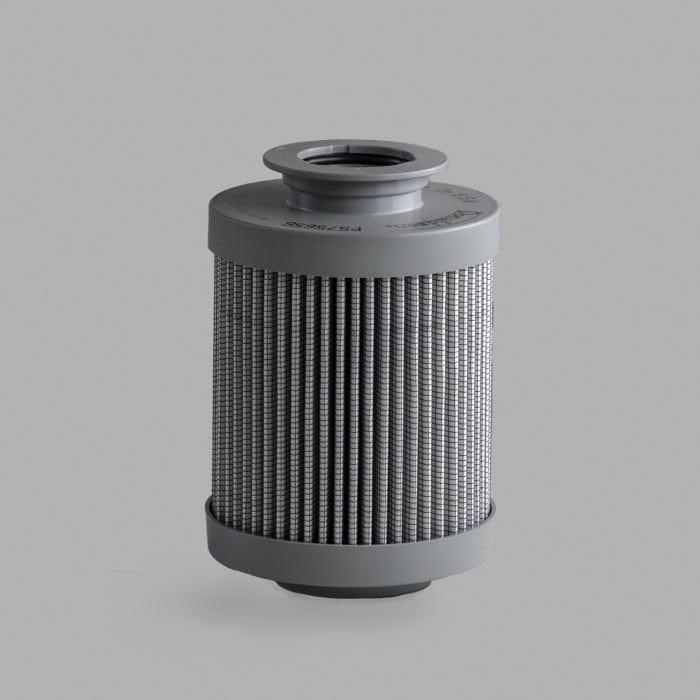

Hydraulic Filter, Cartridge - Donaldson P575656

Hydraulic Filter, Cartridge - Donaldson P575656

£53.87
£53.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P575656

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 82.04 mm (3.23 inch)
  • Inlet Diameter: 32 mm (1.26 inch)
  • Overall Length: 119.9 mm (4.72 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.30 FT
  • Packaged Height: 0.49 FT
  • Packaged Weight: 0.232 kg (0.51 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330986233

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3481862

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 236D - SKID STEER LOADER - CATERPILLAR C3.3B DIT -
CATERPILLAR 242D - SKID STEER LOADER - CATERPILLAR C3.3B DIT -
CATERPILLAR 246D - SKID STEER LOADER - CATERPILLAR C3.3B DIT -
CATERPILLAR 257D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B -
CATERPILLAR 259D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B DIT -
CATERPILLAR 262D - SKID STEER LOADER - CATERPILLAR C3.3B DIT -
CATERPILLAR 272D - SKID STEER LOADER - CATERPILLAR C3.8T -
CATERPILLAR 277D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B DIT -
CATERPILLAR 279D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B DIT -
CATERPILLAR 287D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B -
CATERPILLAR 289D - LOADER COMPACT TRACKED - CATERPILLAR C3.3B DIT -
CATERPILLAR 297D - LOADER COMPACT TRACKED - CATERPILLAR C3.8 -
CATERPILLAR 299D - LOADER COMPACT TRACKED - CATERPILLAR C3.8 -
CATERPILLAR AP1000F - PAVER - CATERPILLAR C7.1 -
CATERPILLAR AP1055F - PAVER - CATERPILLAR C7.1 -
CATERPILLAR AP500F - PAVER - CATERPILLAR C4.4 -
CATERPILLAR AP555F - PAVER - CATERPILLAR C4.4 -
CATERPILLAR AP600F - PAVER - CATERPILLAR C4.4 -
CATERPILLAR AP655F - PAVER - CATERPILLAR C4.4 -
CATERPILLAR D3K2 - TRACTOR TRACKED - CATERPILLAR C4.4 -
CATERPILLAR D4K2 - TRACTOR TRACKED - CATERPILLAR C4.4 -
CATERPILLAR D5K2 - TRACTOR TRACKED - CATERPILLAR C4.4 -
CATERPILLAR D6K2 - TRACTOR TRACKED - CATERPILLAR C6.6 -
CATERPILLAR D6N LGP - TRACTOR TRACKED D SERIES CATERPILLAR C6.6 ACERT -
CATERPILLAR D6N XL - TRACTOR TRACKED D SERIES CATERPILLAR C6.6 ACERT -
