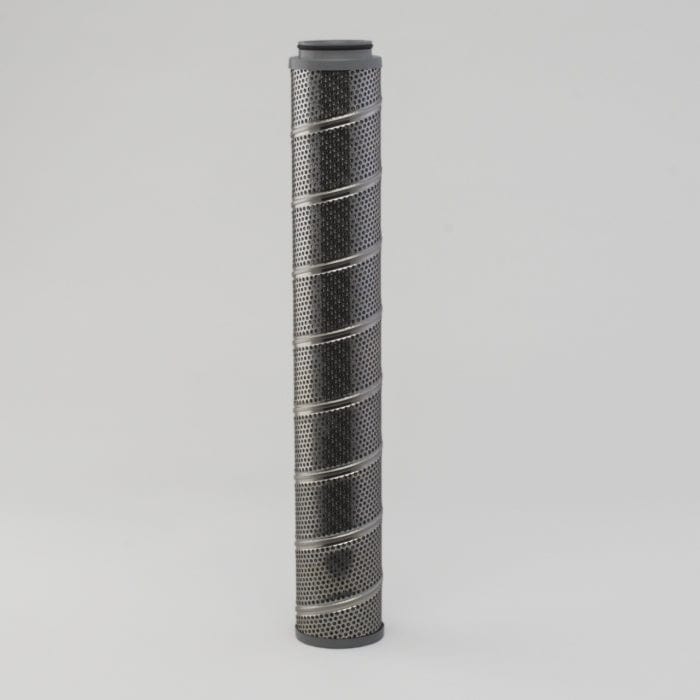

Hydraulic Filter, Cartridge - Donaldson P573116

Hydraulic Filter, Cartridge - Donaldson P573116

£177.32
£177.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P573116

Hydraulic Filter, Cartridge
Seal Material Viton
Outer Diameter 3.11 inch (79 mm)
Inner Diameter 2.48 inch (62.9 mm)
Overall Length 20.78 inch (527.8 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 79 mm (3.11 inch)
  • Inner Diameter: 62.9 mm (2.48 inch)
  • Overall Length: 527.8 mm (20.78 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.090 m (3.60 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.550 m (22.00 inch)
  • Packaged Weight: 1.226 kg (2.70 lb)
  • Packaged Volume: 0.005 m3 (0.17 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330975213

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
EUCLID E12981312
LIEBHERR 11113436
