• Donaldson Hydraulic Filter, Cartridge - Donaldson P571271
1 1

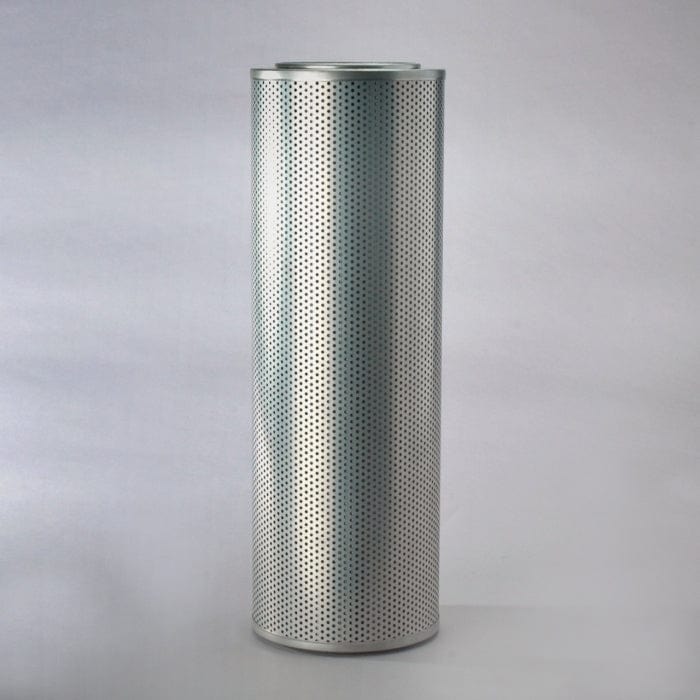

Hydraulic Filter, Cartridge - Donaldson P571271

Hydraulic Filter, Cartridge - Donaldson P571271

£97.12
£97.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P571271

Hydraulic Filter, Cartridge
Outer Diameter 5.51 inch (140 mm)
Inner Diameter 3.86 inch (98 mm)
Length 16.72 inch (424.6 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
Primary Application CATERPILLAR 1799806
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 98 mm (3.86 inch)
  • Length: 424.6 mm (16.72 inch)
  • Efficiency Beta 1000: 11 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: CATERPILLAR 1799806

Packaged Dimensions

  • Packaged Length: 0.148 m (5.90 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.495 m (19.80 inch)
  • Packaged Weight: 2.919 kg (6.44 lb)
  • Packaged Volume: 0.011 m3 (0.39 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330952139

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 4198528
CATERPILLAR 2166676
CATERPILLAR 1799806
CATERPILLAR 1789806
CATERPILLAR 1799806X
CATERPILLAR 3421823
CATERPILLAR 1262131
