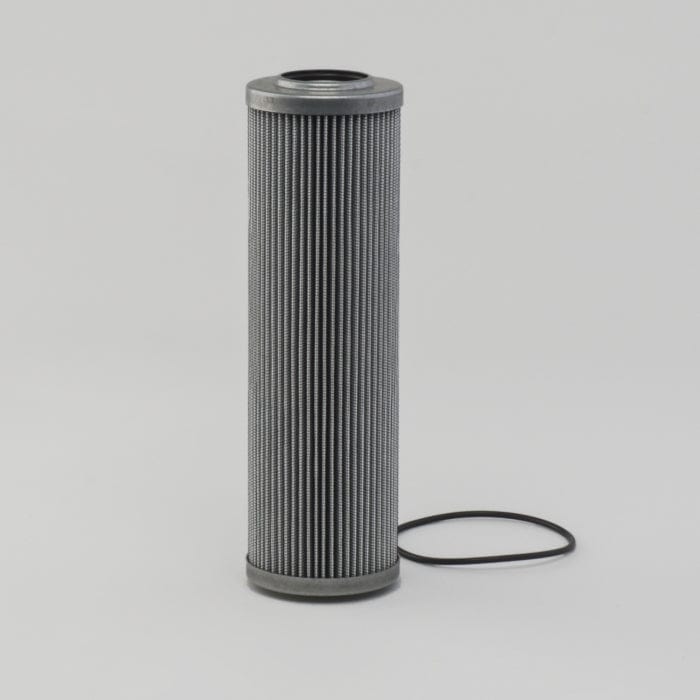

Hydraulic Filter, Cartridge - Donaldson P568836
Hydraulic Filter, Cartridge - Donaldson P568836
Regular price
£63.46
Regular price
Sale price
£63.46
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P568836
Hydraulic Filter, Cartridge| Seal Material | Nitrile |
| Outer Diameter | 3.1 inch (78.84 mm) |
| Inner Diameter | 1.62 inch (41.15 mm) |
| Length | 10.32 inch (262.1 mm) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
| Primary Application | JOHN DEERE AL160771 |
Share
Collapsible content
Specifications
Attributes
- Seal Material: Nitrile
- Outer Diameter: 78.84 mm (3.1 inch)
- Inner Diameter: 41.15 mm (1.62 inch)
- Length: 262.1 mm (10.32 inch)
- Efficiency Beta 1000: 12 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Synthetic
- Primary Application: JOHN DEERE AL160771
Packaged Dimensions
- Packaged Length: 0.090 m (3.60 inch)
- Packaged Width: 0.095 m (3.80 inch)
- Packaged Height: 0.348 m (13.90 inch)
- Packaged Weight: 0.597 kg (1.32 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330195307
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| JCB | 332R7554 | |
| JOHN DEERE | AL203061 | |
| JOHN DEERE | AL60771 | |
| JOHN DEERE | AL160316 | |
| JOHN DEERE | AL160771 | |
| VMC | HF568836 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 6020 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6020SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6120 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6120L | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6120SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6215 | - | TRACTOR | 6015 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6220 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6220L | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6220SE | - | TRACTOR | - | JOHN DEERE 4045T | - |
| JOHN DEERE 6300L | - | TRACTOR | - | JOHN DEERE 4045T | - |
| JOHN DEERE 6320 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6320L | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6320SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 6415 | - | TRACTOR | 6015 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6420 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6420L | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6420S | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6420SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 6515 | - | TRACTOR | 6000 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6520 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6520L | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6520SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6615 | - | TRACTOR | 6015 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6620 | - | TRACTOR | 6020 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 6620SE | - | TRACTOR | 6020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6715 | - | TRACTOR | 6015 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6820 | - | TRACTOR | 6020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6920 | - | TRACTOR | 6020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 6920S | - | TRACTOR | 6020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 7220 | - | TRACTOR | 7020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 7320 | - | TRACTOR | 7020 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 7420 | - | TRACTOR | 7020 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 7520 | - | TRACTOR | 7020 SERIES | JOHN DEERE 6068H | - |
