• Donaldson Hydraulic Filter, Cartridge - Donaldson P566904
1 1

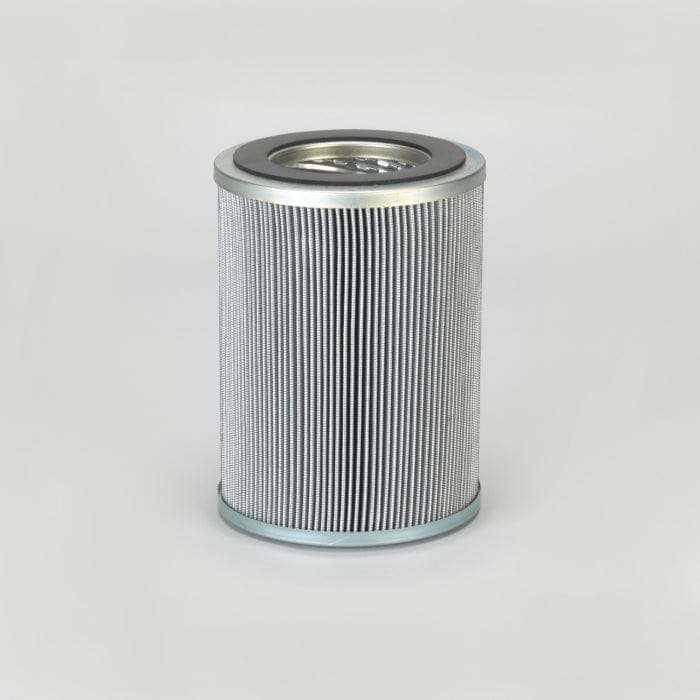

Hydraulic Filter, Cartridge - Donaldson P566904

Hydraulic Filter, Cartridge - Donaldson P566904

£109.37
£109.37
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566904

Hydraulic Filter, Cartridge
Seal Material Viton
Outer Diameter 6.01 inch (152.7 mm)
Inner Diameter 2.87 inch (72.9 mm)
Length 8.27 inch (210 mm)
Gasket OD 2.72 inch (69 mm)
Gasket ID 3.66 inch (93 mm)
Efficiency Beta 200 9 micron
Efficiency Beta 1000 12 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.7 mm (6.01 inch)
  • Inner Diameter: 72.9 mm (2.87 inch)
  • Length: 210 mm (8.27 inch)
  • Gasket OD: 69 mm (2.72 inch)
  • Gasket ID: 93 mm (3.66 inch)
  • Efficiency Beta 200: 9 micron
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.160 m (6.40 inch)
  • Packaged Width: 0.160 m (6.40 inch)
  • Packaged Height: 0.245 m (9.80 inch)
  • Packaged Weight: 1.362 kg (3.00 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330180327
